Zhengzhou Tongding Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of clay dryer in China. We are committed to providing high quality customized products with competitive price. If you're going to buy durable clay dryer made in China, welcome to get pricelist from our factory. 5 years warranty is available.
What it's for
Wet clay is miserable to work with. It's heavy, sticky, and comes out of the ground in lumps that don't want to break apart. If you're making bricks, ceramics, or pottery, you can't use it like that. The moisture has to come down first.

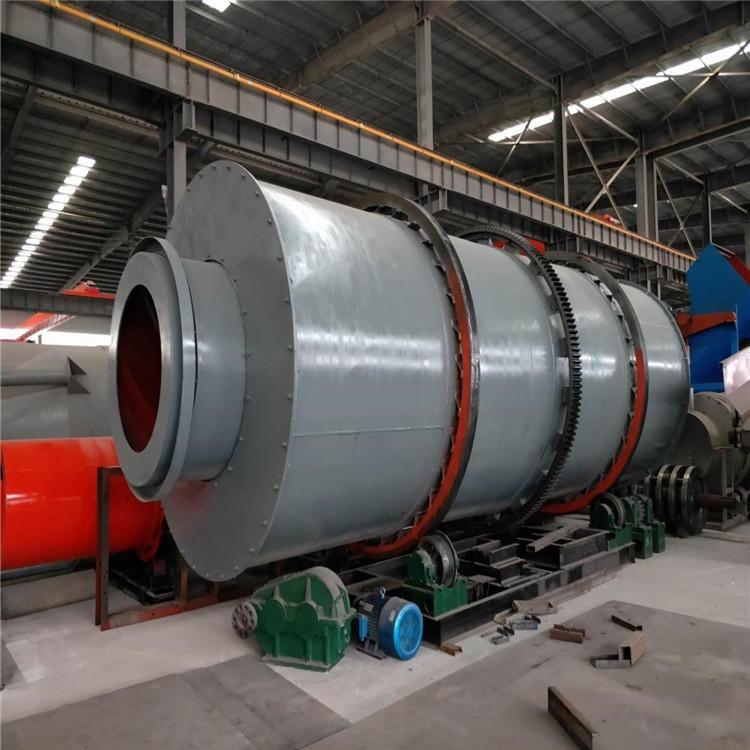

This rotary dryer handles exactly that. Clay goes into a spinning drum where it gets lifted up and dropped through hot air. The heat does its job, the water leaves, and the material comes out dry and ready for the next step-brick pressing, ceramic mixing, whatever your process calls for.
What makes this machine different is that it doesn't choke on sticky material. Some dryers get gummed up when clay starts clinging. This one's built to keep the material moving.
Why it works
The lumps don't stay lumps
Inside the drum, the lifting plates are shaped to grab the clay, lift it, and let it crash down. That tumbling action breaks clumps apart while the drying happens. You don't end up with a hard dry crust on the outside and a wet core in the middle.
You control the final result
Drum speed and hot air temperature both adjust. Need the clay on the drier side? Turn things up. Want to leave a bit of moisture in it? Back off. The machine gives you room to work.
Built thick for a reason
Clay wears on equipment. Fine particles grind at everything they touch. The drum here is thickened steel, made to handle years of mineral clay processing without the shell thinning out.

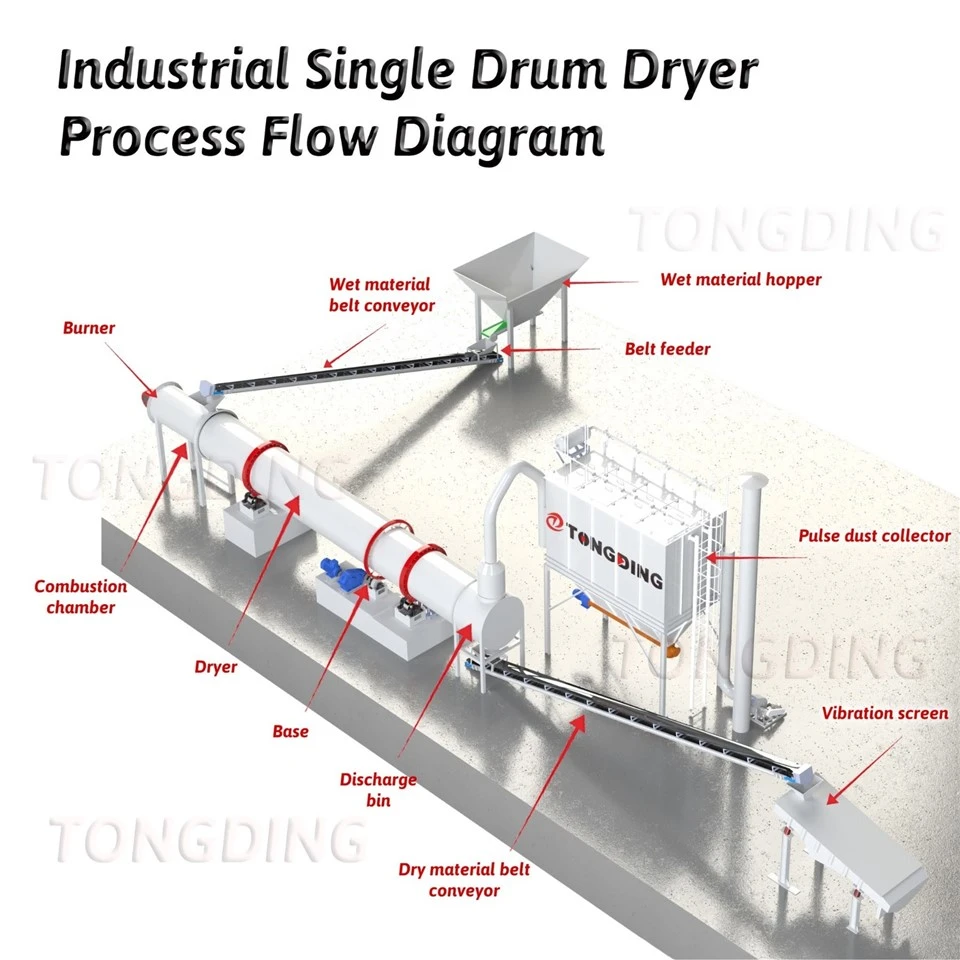

Works alone or in a line
If you've already got crushers, screens, and conveyors, this dryer drops right in. If you don't, it can stand on its own and do the job by itself. Either way, it fits your setup rather than forcing you to rebuild around it.
Where it fits
Brick plants prepping raw material. Ceramic and pottery operations that need consistent dry clay. Mineral processing facilities. Building material producers.
What we do
Tell us your clay type, how wet it's coming in, and how much you need to dry per hour. We'll design around those numbers and send you drawings, a proper quote, and a test-run video from the factory before the machine ships.
Certifications are available when you need them. After the dryer's on site, we'll help with setup and keep spare parts ready for the long run.
Common questions
Q: The clay comes in big hard lumps. Do we need to crush it first?
If the lumps are too large, yes. A crusher ahead of the dryer makes the whole process more efficient. The clay dries more evenly, and the drum doesn't work as hard. We can match the right crusher to your line.
Q: What moisture level can the dried clay reach?
That's up to you. Most customers ask for somewhere between 5% and 15%. We'll set the dryer up to hit whatever target your production needs.
