Zhengzhou Tongding Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of mini2000 dry mortar mixing plant in China. We are committed to providing high quality customized products with competitive price. If you're going to buy durable mini2000 dry mortar mixing plant made in China, welcome to get pricelist from our factory. 5 years warranty is available.
Product Overview

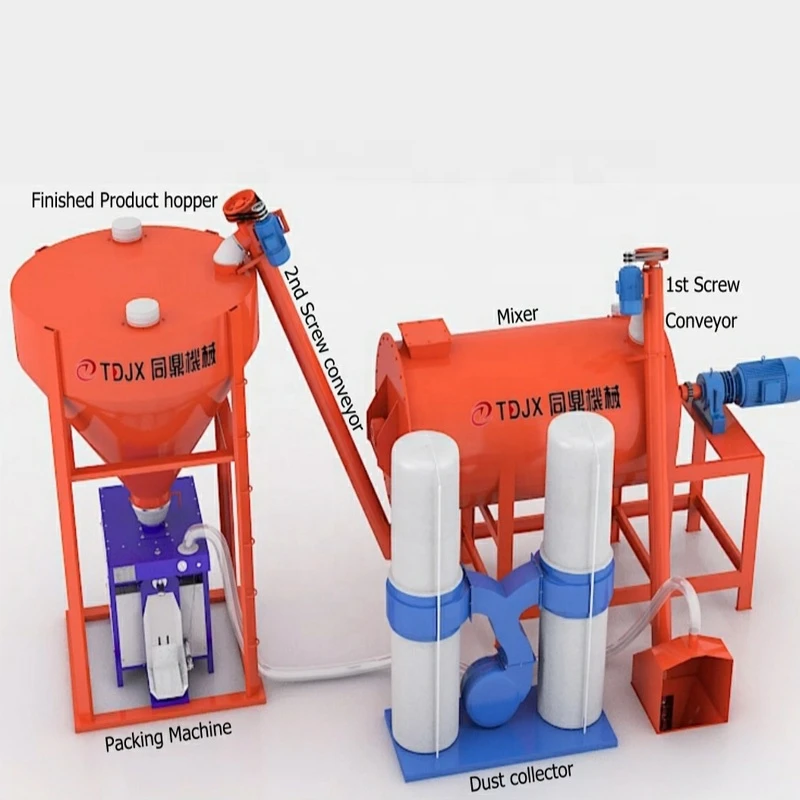

Working Process
Artificial feeding →lifting material → mixing →two lifting of materials → finished product storage→weighing and packaging
Artificial feeding
Manual feeding of raw materials and additives into the mouth
To enhance the material
And then through a hoist to lift the material to the mixer
Mixing
Mixing machine for the full mixing of materials, about 5-10 minutes
The two lifting material
After the completion of the material, through the two lift, transport to the finished goods warehouse
Finished warehouse
Finished warehouse after receiving material, storage
Weighing and packaging
Through the outlet of the finished warehouse packaging machine for automatic weighing and packaging.
Equipment Advantages

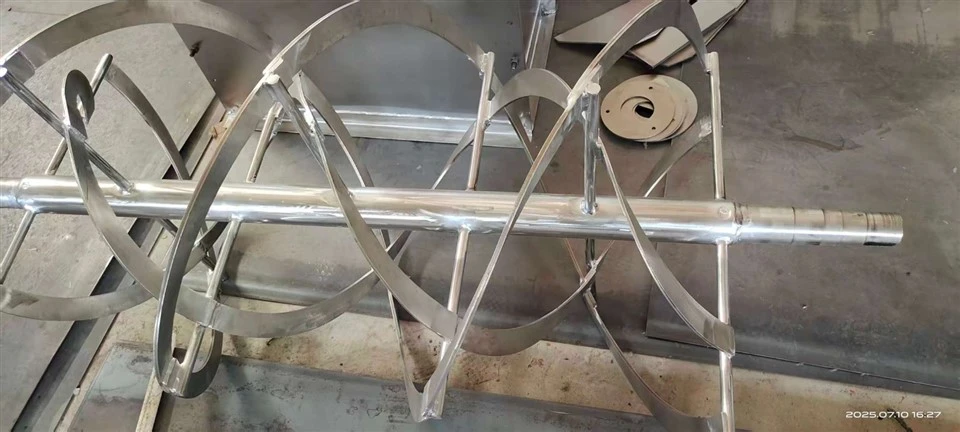

2. Mixer main engine: the spiral belt wear resistant steel, long service life; backed by wheel drive settings, to prevent shaft breaking; motor reducer adopts direct type, stable quality, energy saving and environmental protection;
3. 2nd screw feeder: the spiral blade adopts wear-resistant steel, patent sealing device to prevent the bearings into the dust.
4. Finished products silo: Cone design, export with large caliber, rapid discharge.
5. RF-01 Automatic valve bag packing machine: Professional production of valve port packing machine. All electrical components are made of high quality fittings. Automatic metering precision, high efficiency.
6. dust removal system: Dust removal rate of 99%, to ensure that the working environment clean and tidy.
Key Production Parameters
|
Parameter |
Value |
|
|
Batch Output |
2,000 kg/batch (2 tons) |
|
|
Batch Duration |
Approx. 20 minutes |
|
|
Hourly Capacity |
Approx. 6 tons/hour |
|
|
Daily Capacity (based on 8 hours) |
Approx. 48 tons |
|
|
Operators |
3 persons (2 for feeding & operation, 1 for bagging) |
|
|
Facility Height Requirement |
≥4 meters |
|
|
Footprint |
Approx. 21 m² |
|
|
Raw Material Form |
Bagged material; manual feeding |
|
|
Packaging Form |
Automatic valve bag packaging |
Comparison with the 1000 Model
Model 2000 vs. Model 1000 Basic Dry Powder Production Line
|
Comparison Item |
Model 1000 |
Model 2000 |
Increase/Change |
|
Batch Output |
1 ton |
2 tons |
+100% |
|
Hourly Capacity |
4 tons |
6 tons |
+50% |
|
Batch Time |
15 minutes |
20 minutes |
- |
|
Total Power |
27 kW |
31.5 kW |
+17% |
|
Loader Diameter |
165 mm |
219 mm |
Upgraded |
|
Mixer Volume |
1650 L |
2480 L |
+50% |
|
Finished Product Bin Volume |
1.5 m³ |
2 m³ |
+33% |
|
Footprint |
21 m² |
21 m² |
Same |
|
Operators |
3 |
3 |
Same |
The Model 2000 simplified dry-mix mortar production line achieves a 50%–100% increase in production capacity with only a 17% rise in power consumption and an identical footprint; offering significantly reduced energy consumption per unit, it is the ideal choice for customers seeking higher output.
FAQ (Frequently Asked Questions)
1. What products is the Model 2000 simplified dry-mix production line suitable for?
It is suitable for producing basic dry-mix products such as standard dry-mix mortar, putty powder, gypsum plaster, and masonry mortar. The Model 2000 simplified line offers higher production capacity, making it ideal for enterprises operating at a larger scale.
2. How many operators are required?
Production requires only three people: two for feeding materials and operating the machinery, and one for bagging. Like the Model 500 and Model 1000, this line increases capacity without requiring additional staff, resulting in higher per-capita productivity.
3. What is the difference in warranty coverage between the simplified line and the standard line?
The simplified line comes with a one-year warranty.
