Zhengzhou Tongding Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of mini500 small dry mortar plant in China. We are committed to providing high quality customized products with competitive price. If you're going to buy durable mini500 small dry mortar plant made in China, welcome to get pricelist from our factory. 5 years warranty is available.
Target Customer Segments
- Small-scale building material processing plants
- Entrepreneurs new to the dry-mixed mortar industry
- On-site production for construction projects
- Operations with limited budgets or space constraints
- Temporary projects requiring flexible relocation
- SMEs seeking rapid production startup and a quick return on investment
Equipment List and Specifications
|
No. |
Equipment Name |
Model |
Specifications/Parameters |
Power (kW) |
Remarks |
|
1 |
Primary Loader |
TD-LX-165 |
Diameter 165 × 2800 mm; feed hopper 500 × 500 mm |
3 |
Includes grease line, clean-out door, and labyrinth seal |
|
2 |

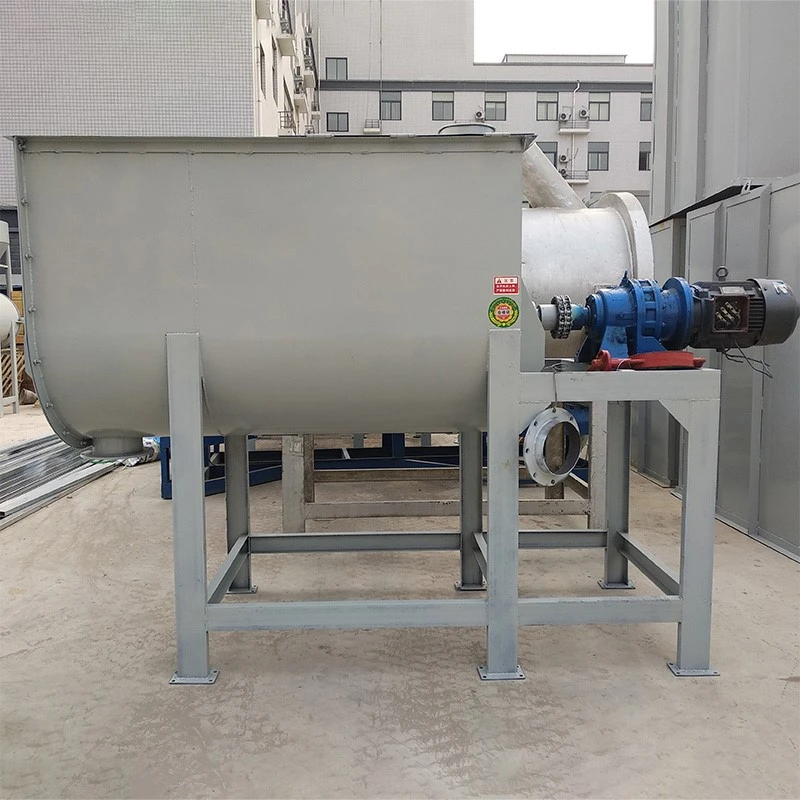

Model 500 Dry Powder Mixer |
G-LH-L500 |
Barrel diameter 860 × 1680 mm; volume 900 L; overall dimensions 2950 × 870 × 1700 mm |
5.5 |

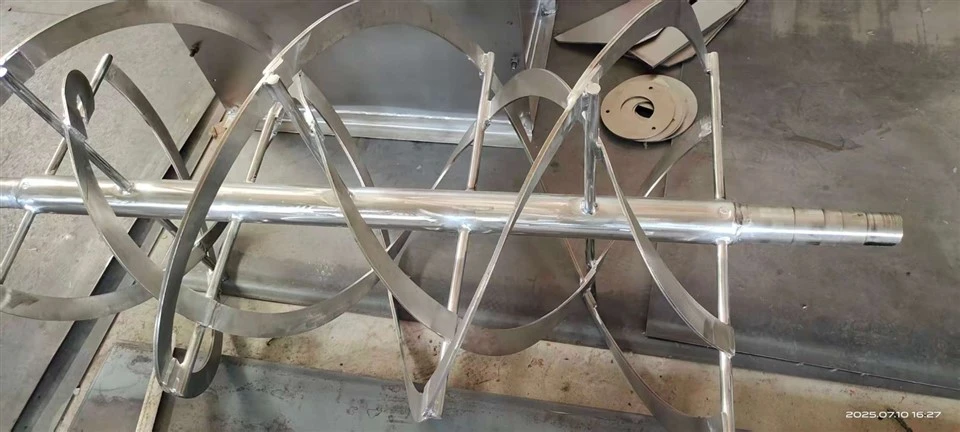

Ribbon-style mixing; patented sealing technology |
|
3 |
Manual Butterfly Valve |
TD-QD |
Diameter 165 mm |
0 |
Controls mixer discharge |
|
4 |
Secondary Loader |
TD-LX-165 |
Diameter 165 × 3000 mm |
3 |
Lifts finished product; includes clean-out door |
|
5 |
Finished Product Silo |
TDG-CP-dk |
Diameter 1600 × 2800 mm; volume 1.5 m³; discharge outlet height 1200 mm |
0 |
Includes air vent and air-purge device |
|
6 |
Fully automatic valve-bag weighing and packaging machine |
TD-50-B |
1100×670×1030mm; 200kg load cell |
3 |
Imported A/D chip; stainless steel switches |
|
7 |
Simple dust collector |
TD-CC-JY |
New-style bag-type dust collector (includes dust hood) |
3 |
Y4-72 blower fan |
|
8 |
Air compressor |
TD-KY |
0.9m³ |
7.5 |
Provides pneumatic power |
|
9 |
Control cabinet |
TD-KZG |
6-channel control cabinet |
0 |
Centralized control for the entire line |
- Total combined power 25kW
Key Production Parameters
|
Parameter |
Value |
 |
|
Batch yield |
500 kg/batch (0.5 tonnes) |
|
|
Batch time |
Approx. 15 minutes |
|
|
Hourly capacity |
Approx. 2 tonnes/hour |
|
|
Daily production capacity (based on an 8-hour shift) |
Approx. 16 tons |
|
|
Operators |
3 (2 for feeding/operation, 1 for bagging) |
|
|
Factory height requirement |
≥4 meters |
|
|
Footprint |
Approx. 18 m² |
|
|
Raw material form |
Bagged material; manual feeding |
|
|
Packaging form |
Automatic valve-bag packaging |
Scope of Application
This production line is highly versatile and capable of processing various construction raw materials, including:
|
Material Type |
Specific Materials |
 |
|
Sand |
Manufactured sand, river sand, quartz sand |
|
|
Dry-mix Products |
Dry-mix mortar, putty powder, gypsum plaster |
|
|
Aggregates |
Construction aggregates, crushed stone |
|
|
Industrial By-products |
Slag, fly ash |
|
|
Others |
Various powdery and granular materials |
Company Strength and Quality Assurance
|
Key Strengths |
Details |
|
|
Year Established |
2010 (15 years of manufacturing experience) |
|
|
Corporate Qualifications |
National High-Tech Enterprise; Henan Province "Specialized, Refined, Unique, and Innovative" (SRUI) Enterprise |
|
|
Patents |
26 invention patents, 77 utility model patents, 8 design patents |
|
|
Certifications |
CE Certification, ISO 9001 |
|
|
Production Scale |
Two manufacturing sites (Yulong & Wulong); total building area exceeding 40,000 m² |
FAQ (Frequently Asked Questions)
1. What products is the Model 500 production line suitable for?
It is suitable for producing standard dry-mix products such as dry-mix mortar, putty powder, gypsum plaster, and masonry mortar.
2. What is the required factory ceiling height for installation?
Installation requires a ceiling height of at least 4 meters; requirements are minimal, and standard factory buildings are suitable.
3. How many operators are needed?
Production requires three people: two for feeding materials and operating the machine, and one for packaging.
4. In what form are the raw materials supplied?
Raw materials are supplied in bags and fed manually; large storage silos are not required.
5. How are the finished products packaged?
Automatic valve-bag packaging is used, ensuring high precision and speed.
6. Warranty
