Zhengzhou Tongding Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of mini3000 dry mortar production line in China. We are committed to providing high quality customized products with competitive price. If you're going to buy durable mini3000 dry mortar production line made in China, welcome to get pricelist from our factory. 5 years warranty is available.
Product Introduction
Why choose Tongding?
|
Item |
Details |
|
|
Warranty |
1-year warranty |
|
|
Quality Certifications |
CE certification; ISO 9001 Quality Management System |
|
|
Patented Technologies |
Patented labyrinth seal (prevents dust ingress and bearing seizure); novel patented sealing technology |
|
|
Corporate Qualifications |
National High-Tech Enterprise; Henan Province "Specialized, Refined, Differential, and Innovative" (SRDI) Enterprise; Henan Province Intellectual Property Advantage Enterprise |
|
|
Patent Portfolio |
26 invention patents, 77 utility model patents, 8 design patents, 12 software copyrights |
|
|
Export Markets |
60+ countries |
|
|
R&D Platform |
Zhengzhou Engineering Technology Research Center for Sand and Gravel Drying Equipment |
|
|
Industry Status |
Industry standard setter for sand dryers |
- Total combined power: 9.5kW
Key Production Parameters
|
Parameter |
Value |
|
|
Batch Output |
3,000 kg/batch (3 tons) |
|
|
Batch Duration |
Approx. 20 minutes |
|
|
Hourly Capacity |
Approx. 9 tons/hour |
|
|
Daily Capacity (based on 8 hours) |
Approx. 72 tons |
|
|
Operators |
4 persons (2 for feeding/operation, 2 for bagging) |
|
|
Facility Height Requirement |
≥4 meters |
|
|
Footprint |
Approx. 28 m² |
|
|
Raw Material Form |
Bagged material, manual feeding |
|
|
Packaging Form |
Automatic valve bag packaging (dual packaging machines operating in parallel) |

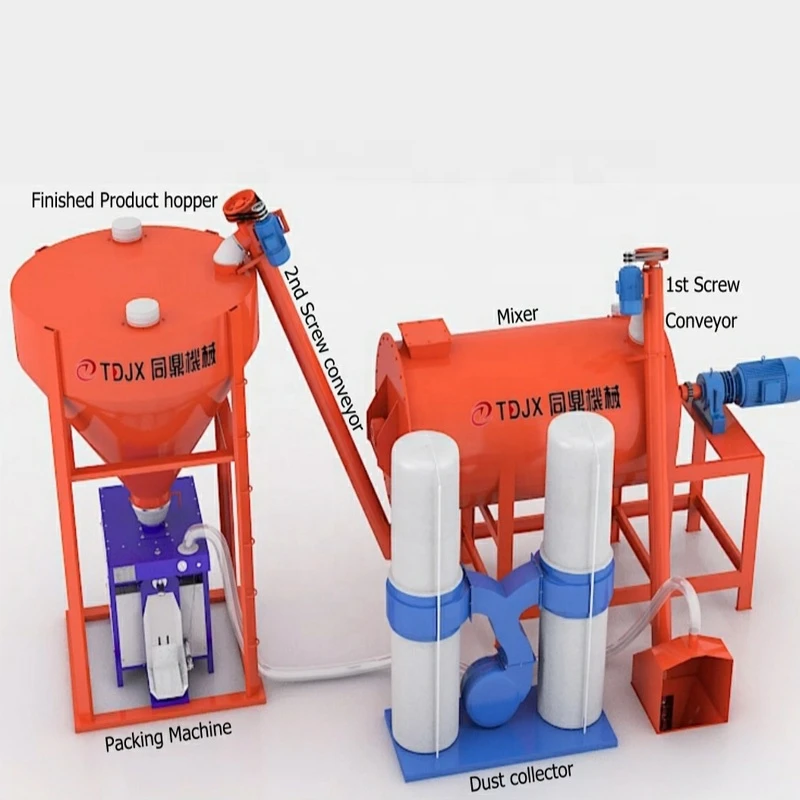

Equipment Design Highlights and Patented Technologies
Upgraded Large-Diameter Feeding System
The Model 3000 simplified dry-mix mortar production line utilizes a primary feeder with a diameter of 219mm and a length of 4200mm (the longest in the simplified series). With an inlet hopper measuring 700×700mm, the feeding capacity is significantly enhanced to meet maximum production output requirements. It retains the labyrinth seal design, effectively preventing dust ingress that could cause bearing seizure, thereby extending the equipment's service life.

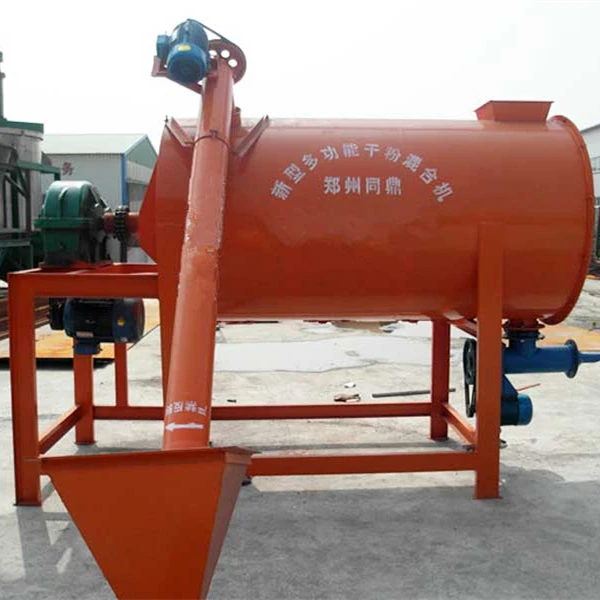

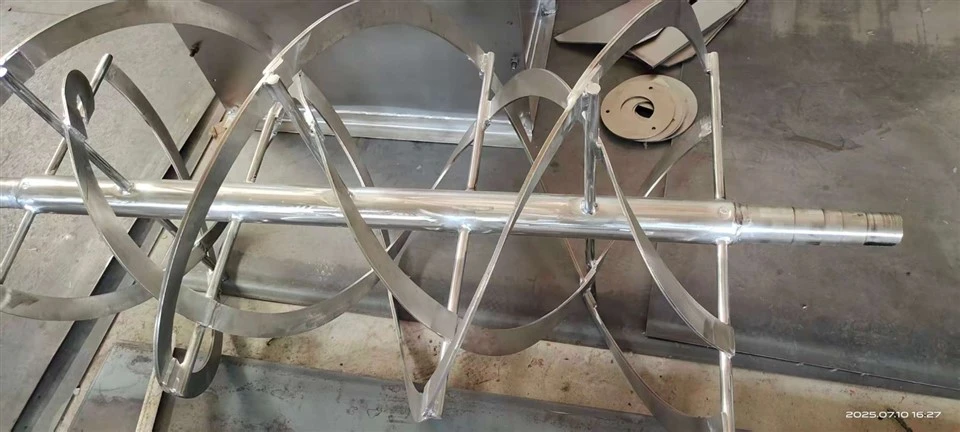

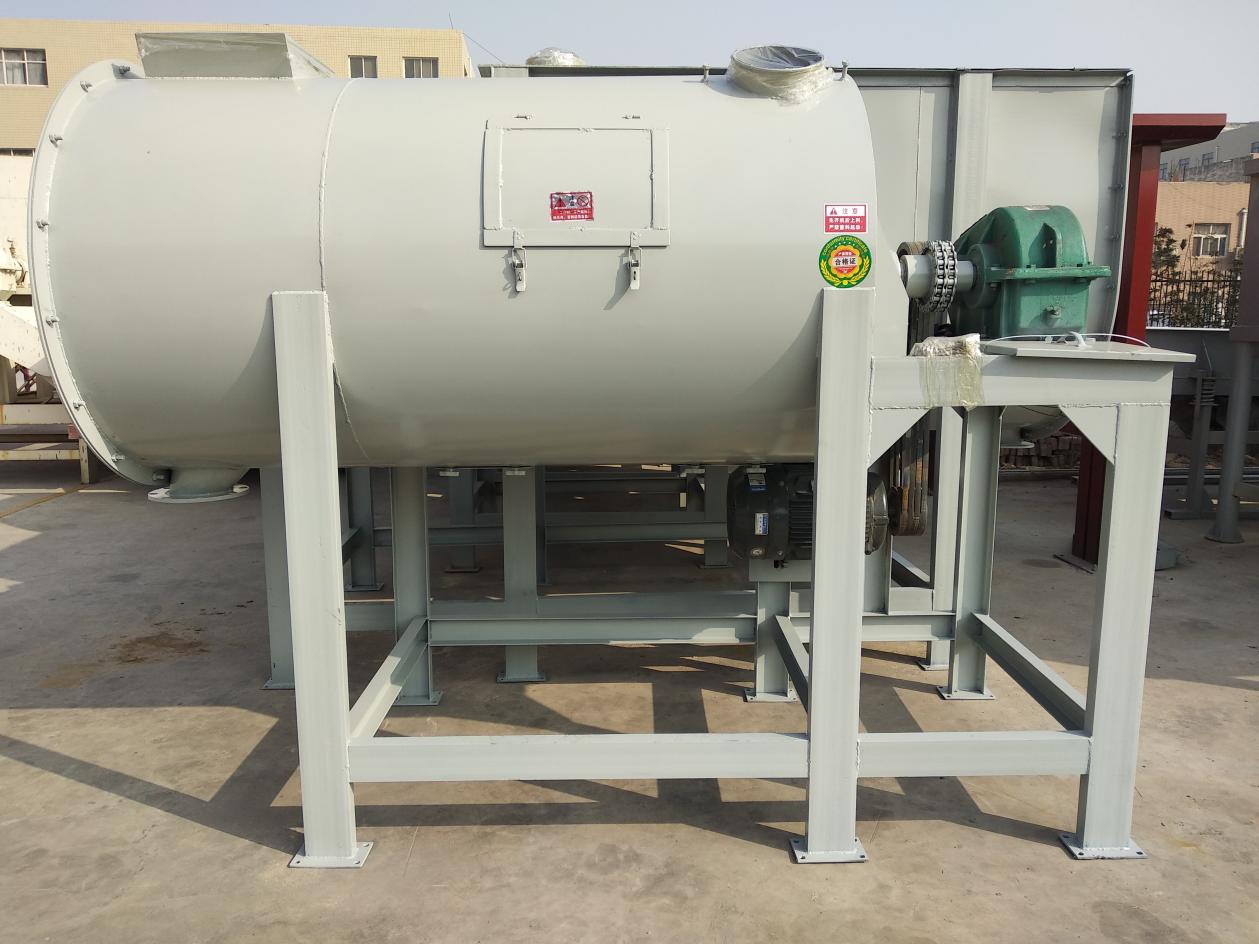

Extra-Large Capacity Ribbon Mixer
The Model 3000 simplified production line is equipped with a 4000L capacity mixer-the largest model in the simplified series. Featuring a drum diameter of 1400mm, it employs a new patented sealing technology to prevent dust from entering and seizing the bearings, ensuring stable, long-term operation. With overall dimensions of 4200×1450×2400mm, the unit offers high mixing efficiency and excellent mixture uniformity.
Comparison with the 2000 Model
Model 3000 vs. Model 2000 Simple Dry-Mix Mortar Production Line
|
Comparison Item |
Model 2000 |
Model 3000 |
Increase |
|
Batch Output |
2 tons |
3 tons |
+50% |
|
Hourly Capacity |
6 tons |
9 tons |
+50% |
|
Batch Time |
20 minutes |
20 minutes |
Unchanged |
|
Total Power |
31.5 kW |
39.5 kW |
+25% |
|
Mixer Volume |
2,480 L |
4,000 L |
+61% |
|
Mixer Drum Diameter |
1,200 mm |
1,400 mm |
Upgraded |
|
Finished Product Bin Volume |
2 m³ |
2.5 m³ |
+25% |
|
Finished Product Bin Type |
Single-outlet |
Dual-outlet |
Upgraded |
|
Number of Packaging Machines |
1 unit |
2 units |
+100% |
|
Footprint |
21 m² |
28 m² |
+33% |
|
Operators |
3 people |
4 people |
+1 person |
FAQ (Frequently Asked Questions)
1. What products is the Model 3000 simplified dry-mix production line suitable for?
It is suitable for producing basic dry-mix products such as standard dry-mix mortar, putty powder, gypsum plaster, and masonry mortar. The Model 3000 offers the highest production capacity and is ideal for manufacturers operating at a significant scale.
3. How many operators are required?
Production requires 4 people: 2 for feeding materials and operating the machinery, and 2 for bagging. While this requires one more person than the Model 2000, the production capacity increases by 50%, resulting in higher per-capita productivity.
4. Why is the Model 3000 equipped with two bagging machines?
The Model 3000 simplified dry-mix production line has a capacity of 9 tons per hour; a single bagging machine cannot keep up with the discharge rate. Operating two bagging machines in parallel ensures that the packaging stage does not become a production bottleneck, enabling continuous production.
5. What are the main differences between the Model 3000 and the Model 2000?
The Model 3000 features a batch output of 3 tons (vs. 2 tons for the Model 2000), an hourly capacity of approximately 9 tons (vs. 6 tons), and a mixer volume of 4,000L (vs. 2,480L). It is equipped with a dual-outlet finished product silo and two bagging machines, occupying a floor area of 28 m² (vs. 21 m²). Capacity is increased by 50%, and the configuration is comprehensively upgraded.
6. Does the Model 3000 require a larger factory building?
The height requirement for the Model 3000 is the same as for other models (≥4 meters), and its footprint is only 7 m² larger than that of the Model 2000 (28 m² vs. 21 m²); thus, the requirements for the factory building remain minimal.
