Zhengzhou Tongding Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of mini5000 small dry mortar production line in China. We are committed to providing high quality customized products with competitive price. If you're going to buy durable mini5000 small dry mortar production line made in China, welcome to get pricelist from our factory. 5 years warranty is available.
Product Overview

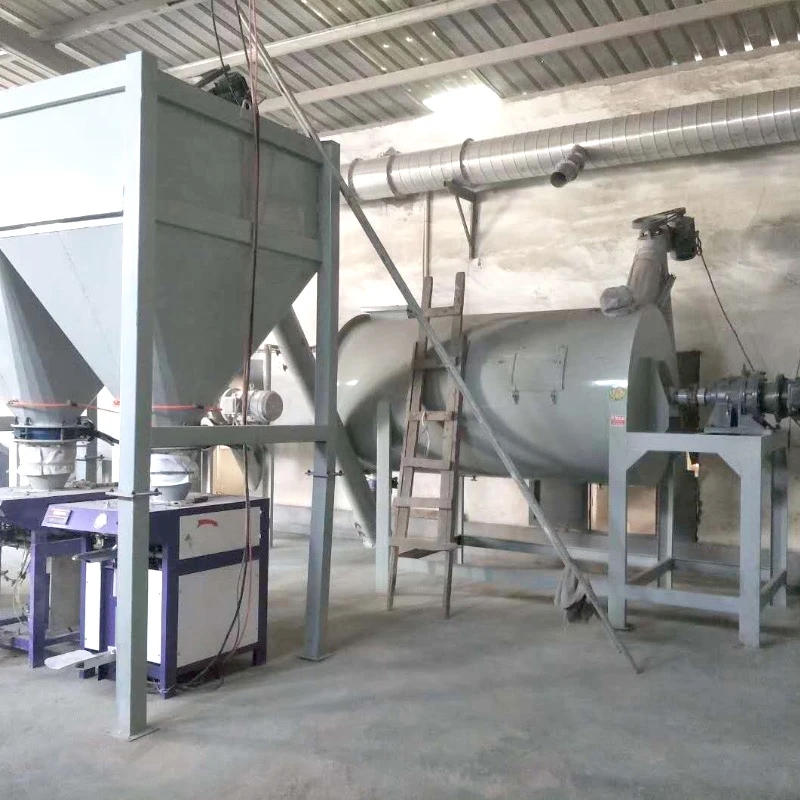

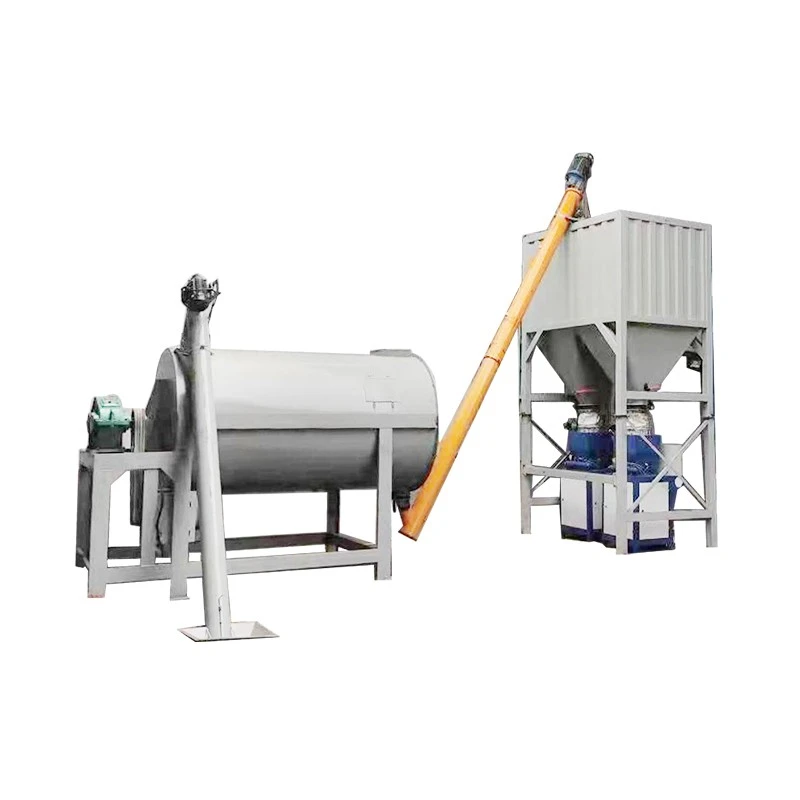

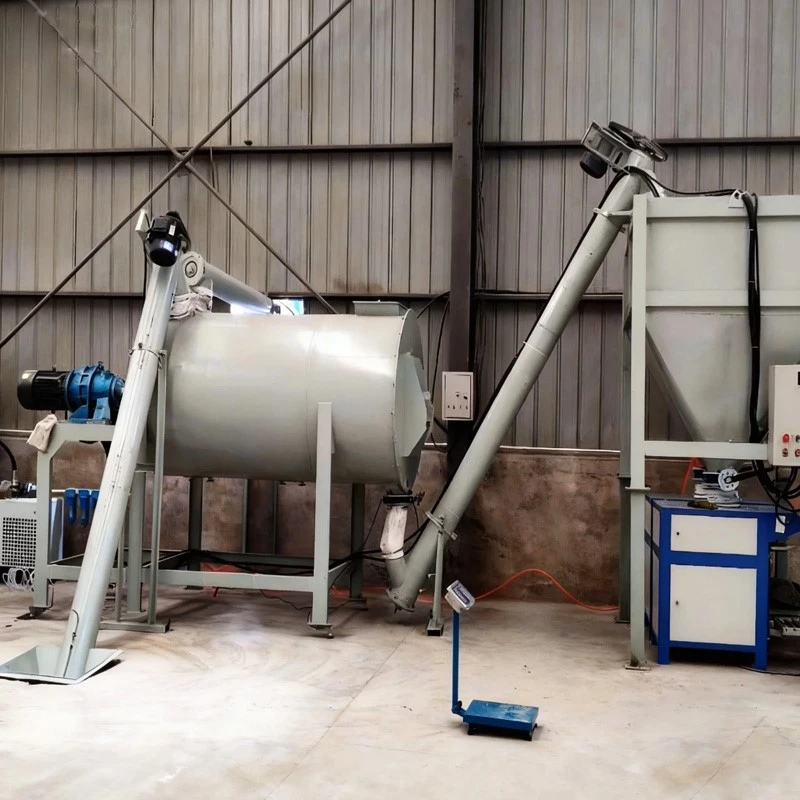

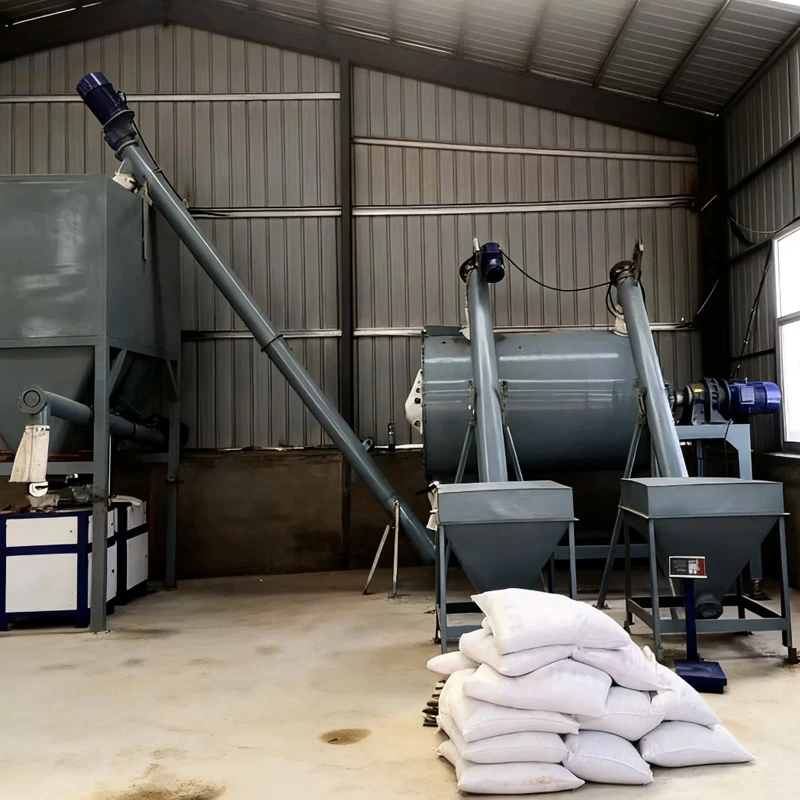

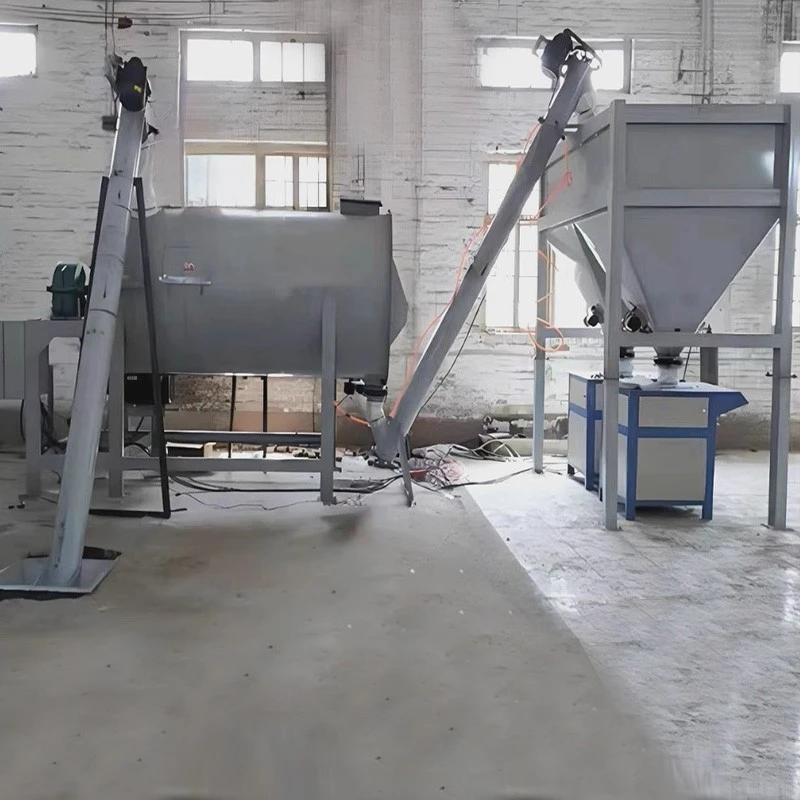

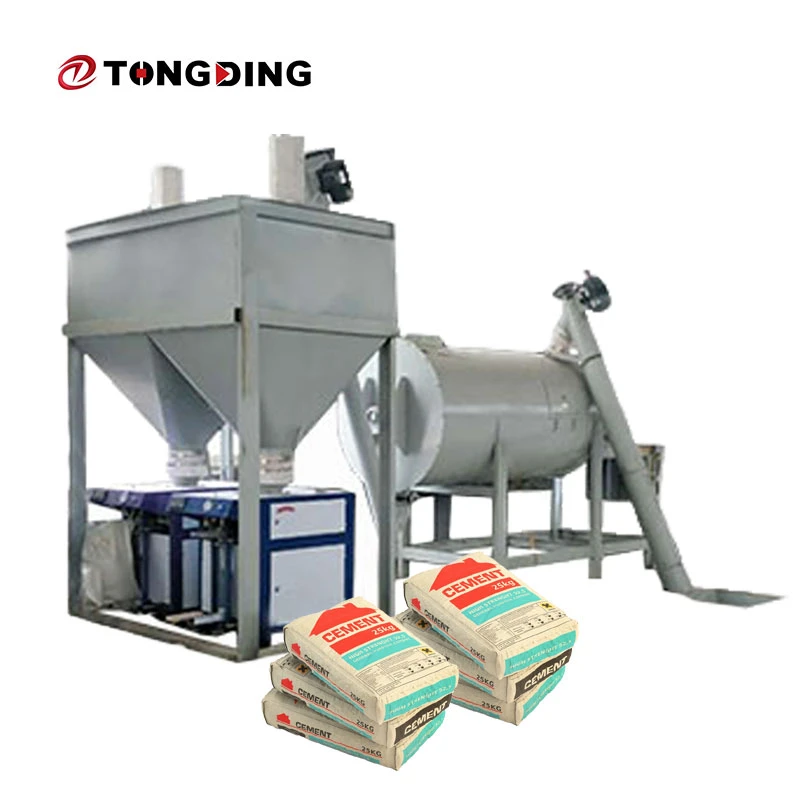

The Mini5000 is the flagship model of the compact dry-mix production line series. It features a batch capacity of 5 tons and an hourly output of 5–10 tons; with dual packaging machines operating in parallel, the daily production capacity can exceed 100 tons. The entire line requires only 3–4 operators, has low factory height requirements (≥4 meters), and occupies a footprint of approximately 28–35 m². It utilizes a ribbon-style main mixer and is equipped with an automatic weighing and packaging system.
Tongding's multifunctional ribbon-style dry-mix mixer is suitable for producing various powder materials-such as dry-mix mortar, putty powder, tile adhesive, and masonry mortar-making it an ideal choice for small and medium-sized building material enterprises looking to achieve scaled production.
Equipment List and Specifications
Model 5000 Simple Dry-Mix Mortar Production Line – Equipment List
|
No. |
Equipment Name |
Model |
Specifications/Parameters |
Power (kW) |
Qty |
Remarks |
|
1 |
Primary Feeding Conveyor |
TD-LX-219 |
Dia. 219 × 4500 mm; inlet hopper 700 × 700 mm |
5.5 |
1 |
Labyrinth seal; includes grease line and clean-out door |
|
2 |
Model 5000 Dry Powder Mixer |
Mini5000 |
Drum dia. 1600 × 2800 mm; volume 5500 L; overall dims. 4800 × 1550 × 2600 mm |
22 |
1 |
Ribbon-type mixing; patented sealing technology |
|
3 |
Manual Butterfly Valve |
TD-QD |
Dia. 219 mm |
0 |
1 |
Controls mixer discharge |
|
4 |
Secondary Feeding Conveyor |
TD-LX-219 |
Dia. 219 × 3500 mm |
5.5 |
1 |
Lifts finished product; includes clean-out door |
|
5 |
Finished Product Silo |
TDG-CP-dk |
Dia. 2200 × 3000 mm; volume 4 m³; discharge outlet 1200 mm above ground |
0 |
1 |
Includes air vent and air-purge device |
|
6 |
Fully Automatic Valve-Bag Weighing & Packing Machine |
TD-50-B |
1100 × 670 × 1030 mm; 200 kg load cell |
3 |
2 |
Imported A/D chip; stainless steel switch |
|
7 |
Simple Dust Collector |
TD-CC-JY |
New-style bag filter; includes dust hood |
3 |
1 |
Fan model Y4-72 |
|
8 |
Air Compressor |
TD-KY |
0.9 m³ |
7.5 |
1 |
Provides pneumatic power |
|
9 |
Control Cabinet |
TD-KZG |
8-channel control cabinet |
0 |
1 |
Centralized control for the entire line |
- Total combined power: 49.5kW
Key Production Parameters
|
Parameter |
Value |
|
|
Batch Output |
5,000 kg/batch (5 tons) |
|
|
Batch Duration |
Approx. 20–25 minutes |
|
|
Hourly Capacity |
Approx. 5–10 tons/hour |
|
|
Daily Capacity (8-hour shift) |
Approx. 40–80 tons |
|
|
Operators |
3–4 persons |
|
|
Facility Height Requirement |
≥4 meters; standard factory buildings are suitable (no structural height modification needed). |
|
|
Footprint |
Approx. 28–35 m² |
|
|
Raw Material Form |
Bagged raw materials; manual feeding |
|
|
Packaging Form |
Automatic valve-bag packaging (dual packaging machines operating in parallel); doubles packaging speed. |
Equipment Design Highlights and Patented Technologies
Large-Diameter Feeding System
Features a primary feeder with a 219mm diameter (identical to the Model 3000) and a length of 4500mm; the 700×700mm inlet ensures ample feeding capacity to meet maximum production output requirements. A labyrinth seal design effectively prevents dust ingress that could cause bearing seizure, thereby extending the equipment's service life.

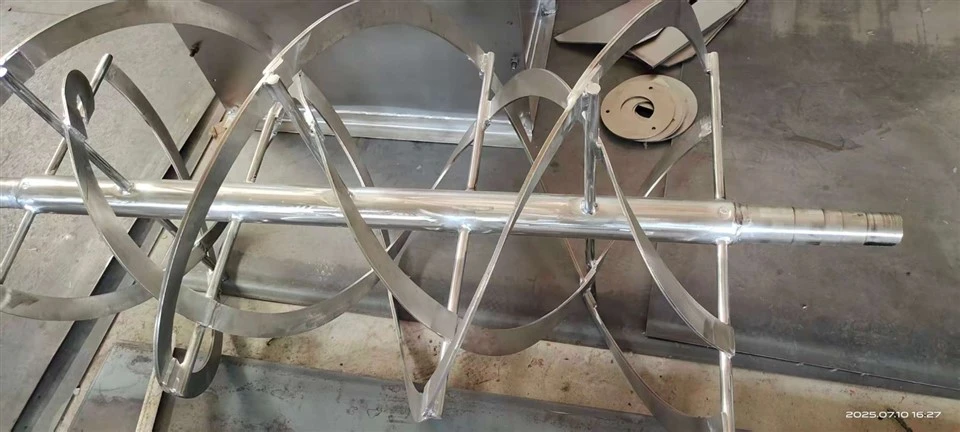

Extra-Large Capacity Ribbon Mixer
Equipped with a 5500L mixer-the largest capacity model in the "Simple" series. With a drum diameter of 1600mm, it utilizes patented new sealing technology to prevent dust from entering and seizing the bearings, ensuring stable, long-term operation. Overall dimensions: 4800×1550×2600mm.
High-Capacity Finished Product Silo
The finished product silo features an upgraded diameter of 2200mm and a 4m³ volume, meeting the need for large-batch storage. It is designed with one inlet and two exhaust vents to facilitate gas venting and ensure smooth material discharge. An air-blowing device is installed above the discharge outlet to effectively prevent material clogging.
Comparison of All Models in the Simple Series
|
Comparison Item |
Model 500 |
Model 1000 |
Model 2000 |
Model 3000 |
Model 5000 |
|
Batch Output |
0.5 ton |
1 ton |
2 tons |
3 tons |
5 tons |
|
Batch Time |
15 min |
15 min |
20 min |
20 min |
20–25 min |
|
Hourly Capacity |
1.5 tons |
3 tons |
6 tons |
9 tons |
5–10 tons |
|
Main Unit Power |
5.5 kW |
7.5 kW |
11 kW |
15 kW |
22 kW |
|
Operators |
3 |
3 |
3 |
4 |
3–4 |
|
Footprint |
18 m² |
21 m² |
21 m² |
28 m² |
28–35 m² |
|
Number of Packaging Machines |
1 |
1 |
1 |
2 |
2 |
Target Customer Segments
- Medium-sized building material processing plants
- Regional dry-mix mortar suppliers
- Enterprises seeking to control equipment investment costs while maintaining significant production capacity
- Production projects with limited site space but high capacity requirements
- Enterprises aiming to achieve near-standard production line output with an investment in a simplified line
Company Strength and Quality Assurance
|
Key Strengths |
Details/Data |
|
|
Year Established |
2010 (15 years of manufacturing experience) |
|
|
Corporate Qualifications |
National High-Tech Enterprise; Henan Province "Specialized, Refined, Distinctive, and Innovative" (SRDI) Enterprise |
|
|
Patent Portfolio |
26 invention patents, 77 utility model patents, 8 design patents |
|
|
Patented Technologies |
Labyrinth seal patent (prevents dust ingress that causes bearing seizure); novel sealing technology |
|
|
Production Scale |
Two manufacturing sites (Yulong & Wulong); total building area exceeding 40,000 m² |
|
|
Export Markets |
Over 60 countries |
|
|
Service Commitment |
24-hour response; solution provided within 1 hour |
|
|
Warranty |
1-year warranty |
|
|
Quality Certifications |
CE certification; ISO 9001 Quality Management System |
|
|
Installation |
Detailed installation manual provided |
Tongding Factory specializes in the R&D, design, and manufacturing of complete production line equipment for powder-based mortars. Our specialized product range includes advanced standalone units such as dry-mix mortar mixers, putty powder mixers, twin-shaft paddle mixers, ploughshare mixers, automatic metering and packaging scales, and pulse dust collectors, as well as various drying systems for sand, quartz sand, and river sand. These products have been widely adopted by leading enterprises across sectors including construction, building materials, chemicals, powder processing, mortar production, coatings, metallurgy, and environmental protection, earning high praise from our customers.
