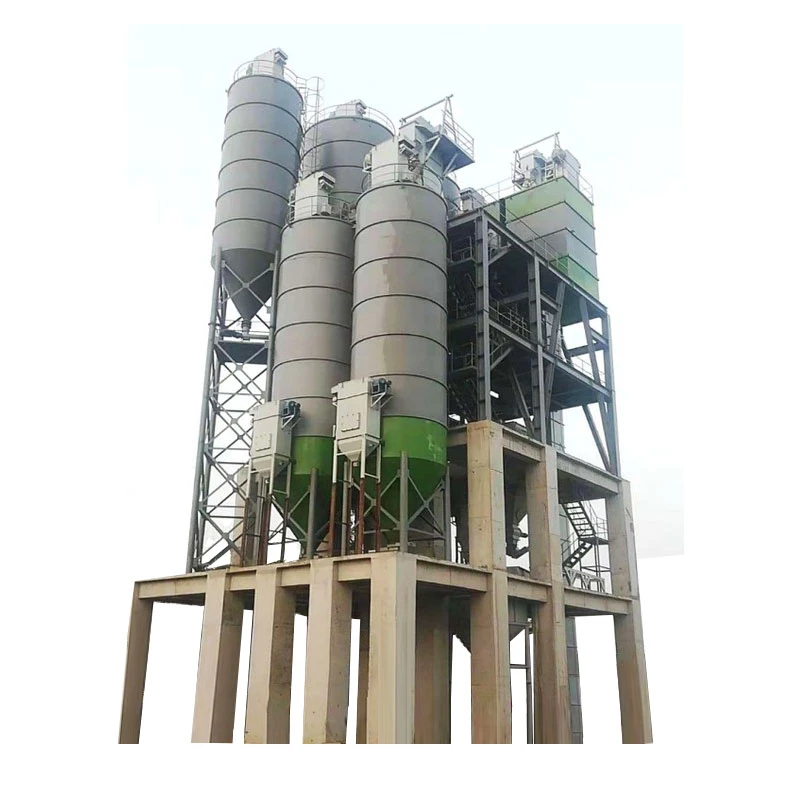

Gypsum Mortar Production Line

Gypsum Mortar Production Line
Product Introduction:
Gypsum mortar is a type of specialty mortar—specifically, a modern dry-mix mortar for construction that utilizes gypsum as its primary binding agent. It is primarily used for leveling interior walls and ceilings. Replacing traditional cement mortar and mixed mortar, it has become a highly popular plastering material for high-quality interior finishing projects. The raw materials required include hemihydrate gypsum, heavy calcium carbonate, perlite, cellulose ether, thixotropic agents, starch ether, retarders, and other chemical additives.
A gypsum mortar production line typically comprises the following components: material lifting units, storage units, material conveying and proportioning units, weighing units, proportioning-feed lifting units, a perlite pneumatic conveying system, a pre-mixing unit, the main mixing unit, a finished product packaging system, an automatic palletizing system, a dust removal system, and a PLC-based integrated control system.
Send Inquiry
Description
Technical Parameters

Zhengzhou Tongding Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of gypsum mortar production line in China. We are committed to providing high quality customized products with competitive price. If you're going to buy durable gypsum mortar production line made in China, welcome to get pricelist from our factory. 5 years warranty is available.



Product Introduction

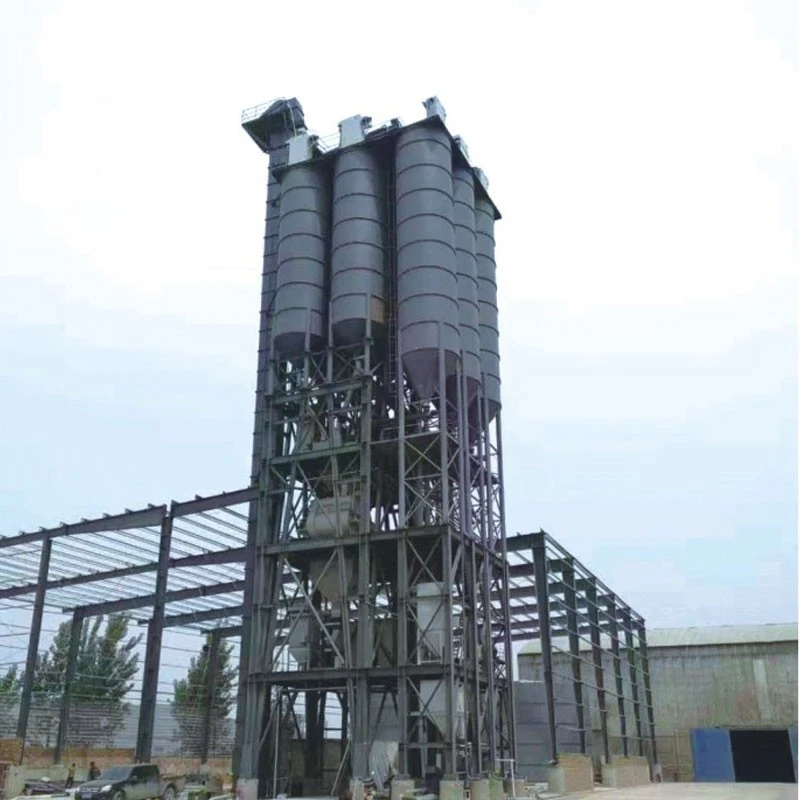

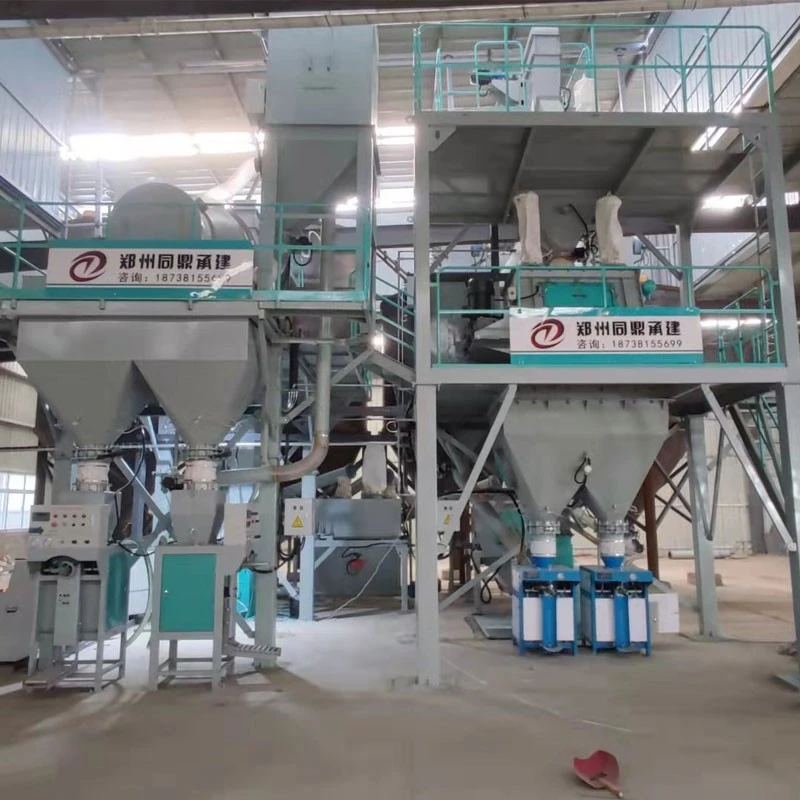

This fully-automatic production line manufactures dry-mix gypsum mortars, including gypsum levelling mortar, lightweight gypsum mortar and gypsum plastering mortar.

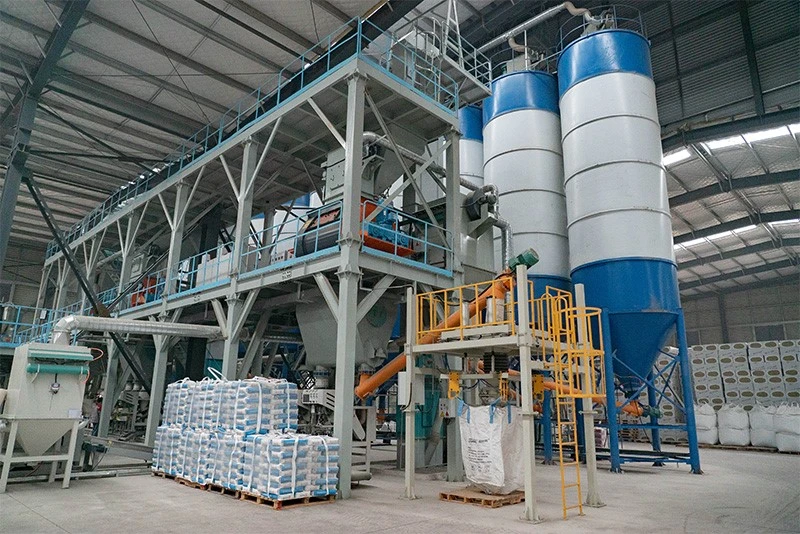

Gypsum Putty production line

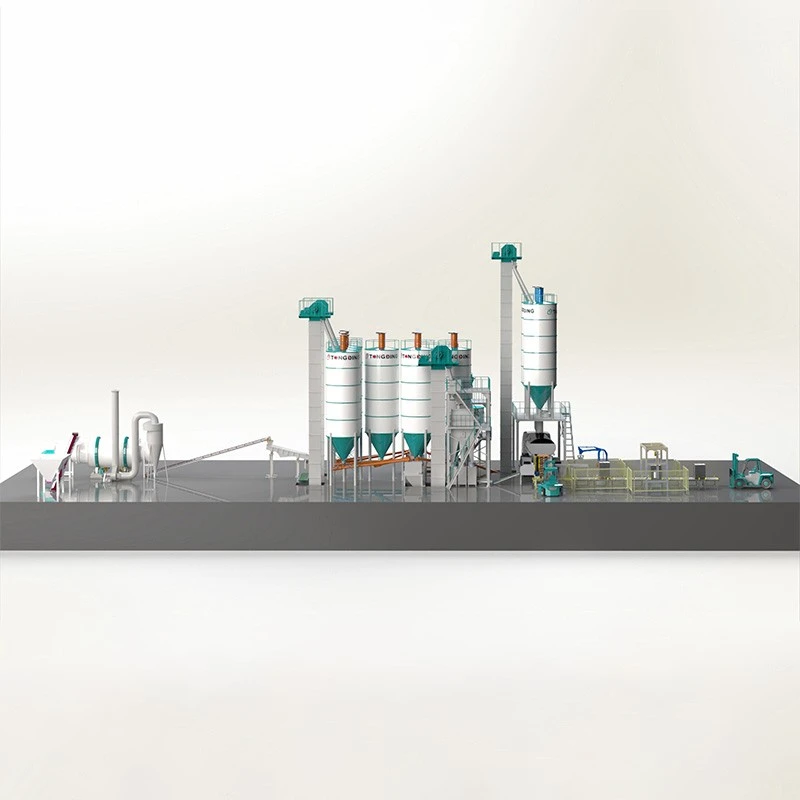

Main Production Process

Raw Material Storage → Batching & Weighing → Conveying → Mixing → Finished-material Silo Storage → Weighing & Packing

If incoming sand carries high moisture content, a sand drying and screening system can be added:
Wet Sand → Drying → Screening → Storage → Batching → Mixing → Packing

The production workflow covers raw material storage, batching & weighing, conveying, mixing and packaging.
It accurately doses gypsum, sand, fillers and various functional additives per preset formulas and blends them homogeneously. The final output is gypsum mortar with stable quality and excellent workability.
We tailor-design this production line to match customers' production capacity, raw-material properties, plant layout and product formulas. It fits small-, medium- and large-scale dry-mix mortar projects.



Main Raw Materials

- Gypsum: primary binding agent
- Dry Sand: forms the skeletal structure and bulk volume - Calcium Carbonate: optimizes filling performance and workability
- HPMC (Hydroxypropyl Methyl Cellulose Ether): improves water retention, workability and anti-sagging performance
- RDP (Redispersible Polymer Powder): enhances bonding strength and flexibility
- Starch Ether: optimizes handling performance and anti-slip property during application
- Retarders / Accelerators & other functional additives: adjust setting time and overall product performance

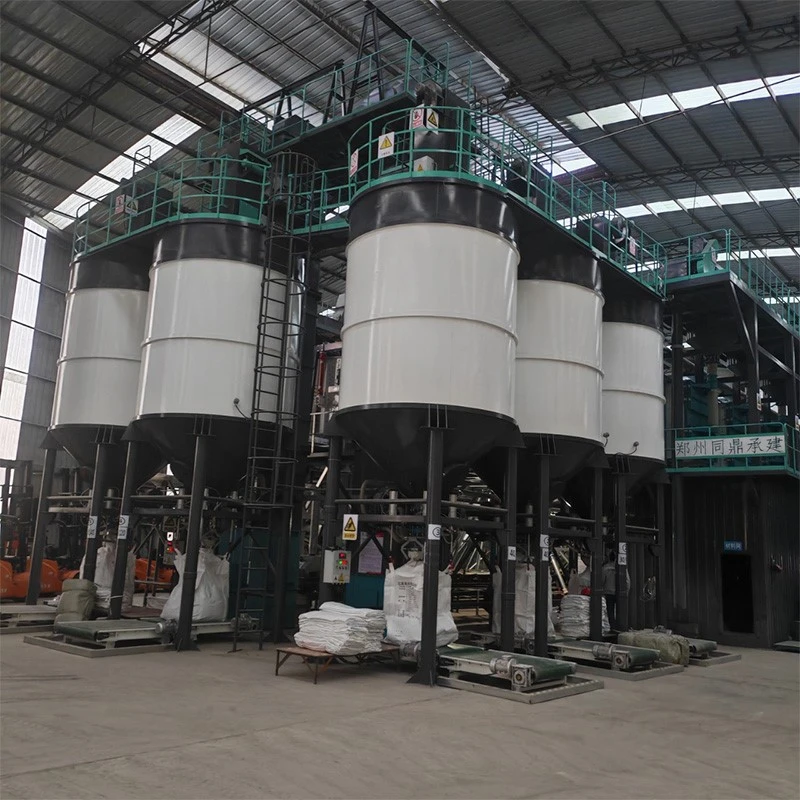

dry mortar mixing plant



Specification and Parameter

Model

Capacity

(T/H)

Volume

(m3)

Loading Factor

Power

(KW)

Rotary speed (r/min)

Mixing time (min)

Dimension(L*W*H)

(mm)

WSZ2

10-15

2

0.4-0.6

18.5

43

0.5-3

2460*1640*1520

WSZ3

15-25

3

22

2850*1640*1520

WSZ4

25-40

4

30

29

2800*2110*1950

WSZ6

60-120

6

45

3130*2470*2120

WSZ10

100-170

10

55

3600*3000*2510

The type of mortar that can be produced by a machine

1.Masonry mortar

2.Plastering mortar(bottom)

3.Floor mortar

4.Adhesive mortar(stupid board glue)

5. Wall tiles adhere to mortar

6.Caulking agent mortar(black)

7.Caulking agent mortar(cream-coloured)

8.Caulking agent mortar(white)

9.Seaming agent mortar

10.General non-shrinkage grouting material

11.Thermal mortar

12.Glue for tile ,good cement

13.Self-leveling mortar

14.Inter facial mortar

15.Cement plaster mortar

16.Whitewashed plaster(bottom)

17.Waterproof paint

18.External putty powder

19.Internall wall putty powder

20.Emulsion varnish

21.Really stone paint

22.Other powder material



Key Line Features

01/

Accurate batching for consistent product quality
Automatic weighing and batching systems precisely meter gypsum, sand, fillers and additives for different gypsum-mortar formulas and minimize manual errors.

02/

Fast and homogeneous mixing

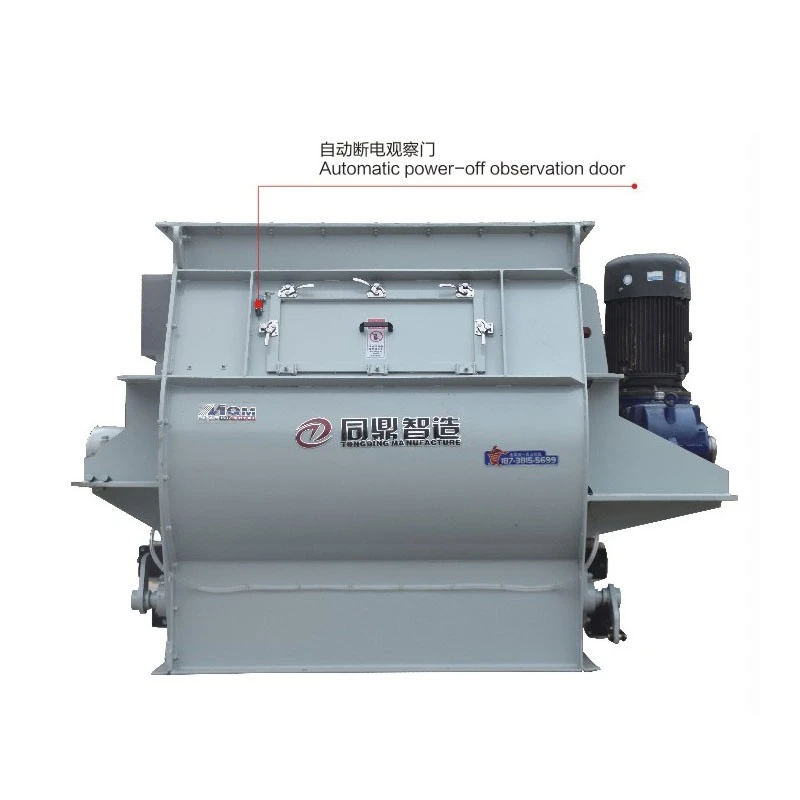

High-efficiency twin-shaft gravity-free mixers deliver quick, thorough blending of gypsum, sand and low-dose additives for consistent finished-product quality.

03/

High-precision dosing for minor additives
A separate micro-additive dosing system is available for low-dosage ingredients such as HPMC, starch ether and RDP to boost weighing accuracy for trace components.

04/

High automation to cut labour costs
Centralized automatic control runs the whole process: raw-material feeding, auto-batching, elevating, mixing and finished-goods packaging, which reduces labour requirements.

05/

Multi-product production flexibility
One single line can produce various gypsum-based dry-mix mortars simply by adjusting formulas and process parameters, covering different on-site construction requirements.

06/

Custom-built for individual projects
Solutions are customized according to target output (5 t/h, 10 t/h, 15 t/h, 20 t/h, 30 t/h and above), plant height, raw-material storage modes and packaging specifications.



Advantages of computer control cabinet



1. The program of the touch screen control system is fixed and cannot be changed.
The program of an industrial computer one can be re edited and adjusted.
(When you add a new machine or a control unit, we can edit your new program, send it to you, and then you can update the program on the industrial computer to use it. However, touch screens are difficult to achieve this change.)
2. The IPC can be connected to the Internet, and we can remotely solve all problems of the control system for you. And, you can remotely monitor the production status of your machine and use your mobile phone to monitor it in the software program we provide.
3. All production batches, production status, and touch screens can only export data using USB drives. Industrial control computers can be connected to the internet to download all production data.
