Masonry Mortar Production Line

Masonry Mortar Production Line
Product Introduction:

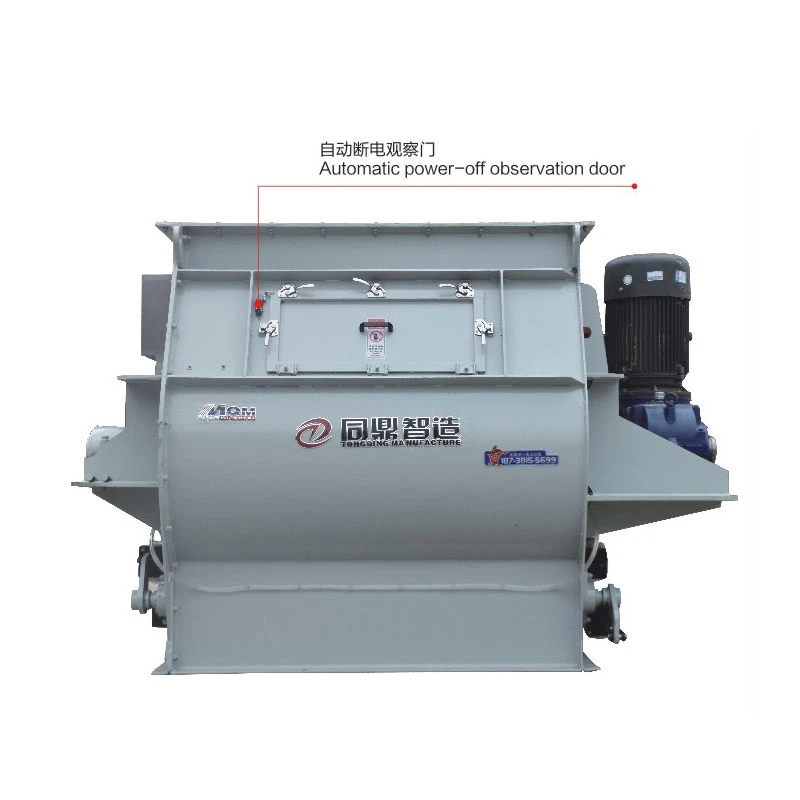

The masonry mortar production line utilizes PLC computer control, ensuring every step of the process is clearly visible and achieving a high level of automation. The twin-shaft paddle "zero-gravity" mixer is available in capacities ranging from 2 m³ (8–10 t/h) and 3 m³ (15–20 t/h) to 4 m³ (25–30 t/h), 6 m³ (30–40 t/h), and 10 m³ (50–60 t/h).
Send Inquiry
Description
Technical Parameters

Zhengzhou Tongding Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of masonry mortar production line in China. We are committed to providing high quality customized products with competitive price. If you're going to buy durable masonry mortar production line made in China, welcome to get pricelist from our factory. 5 years warranty is available.



Product Introduction

Masonry Mortar is the Dry mixed mortar mainly used for building wall materials, such as bricks, blocks, stone, and so on.
The raw materials are mainly Graded dry sand, cement, powder fillers, and some functional additives (water retaining agent, starch ether, redispersible latex powder, etc.).
After mixing with water, it will be used at the construction site.
The main function of the Masonry Mortar is to bond masonry materials such as blocks or bricks together and fill the gaps between the masonry, thereby improving the overall integrity, stability, and durability of the wall.
Common types: ordinary masonry mortar, concrete block masonry mortar, aerated concrete block masonry mortar, thin layer masonry mortar, high-strength masonry mortar, etc.

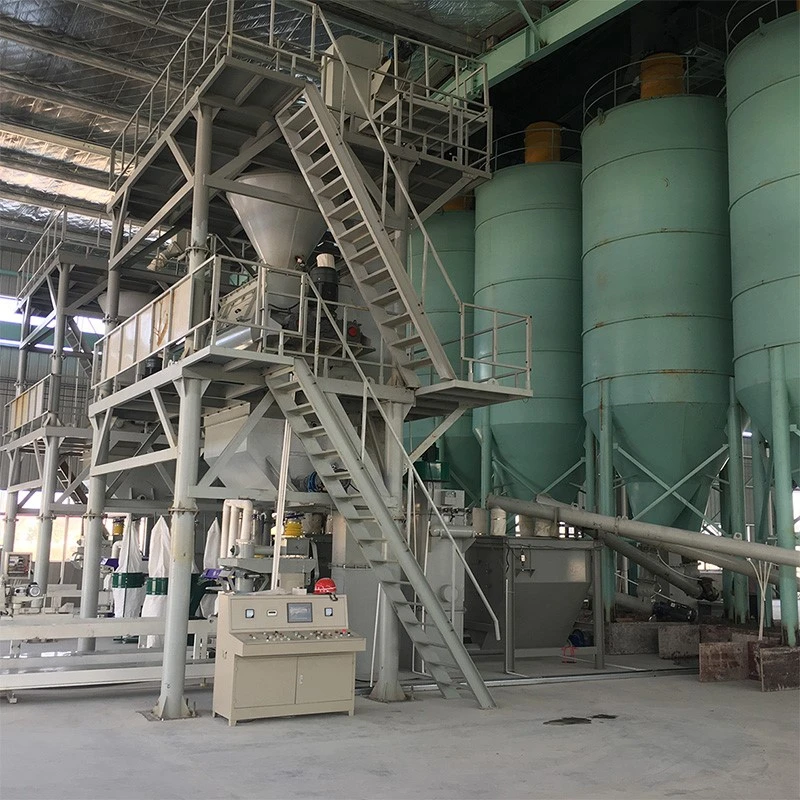

dry-mortar plant



Complete production process

Raw material preparation (Sand, Cement, Fillers, and Additives) → Sand Drying → Screening → Storage → Weighing&Transporting → Mixing → Finished Product Storage → Packaging&Palletizing



Specification and Parameter

Model

Capacity

(T/H)

Volume

(m3)

Loading Factor

Power

(KW)

Rotary speed (r/min)

Mixing time (min)

Dimension(L*W*H)

(mm)

WSZ2

10-15

2

0.4-0.6

18.5

43

0.5-3

2460*1640*1520

WSZ3

15-25

3

22

2850*1640*1520

WSZ4

25-40

4

30

29

2800*2110*1950

WSZ6

60-120

6

45

3130*2470*2120

WSZ10

100-170

10

55

3600*3000*2510

The type of mortar that can be produced by a machine

1.Masonry mortar

2.Plastering mortar(bottom)

3.Floor mortar

4.Adhesive mortar(stupid board glue)

5. Wall tiles adhere to mortar

6.Caulking agent mortar(black)

7.Caulking agent mortar(cream-coloured)

8.Caulking agent mortar(white)

9.Seaming agent mortar

10.General non-shrinkage grouting material

11.Thermal mortar

12.Glue for tile ,good cement

13.Self-leveling mortar

14.Inter facial mortar

15.Cement plaster mortar

16.Whitewashed plaster(bottom)

17.Waterproof paint

18.External putty powder

19.Internall wall putty powder

20.Emulsion varnish

21.Really stone paint

22.Other powder material



Two structural forms: Top-level batching structure and Ground-level batching structure

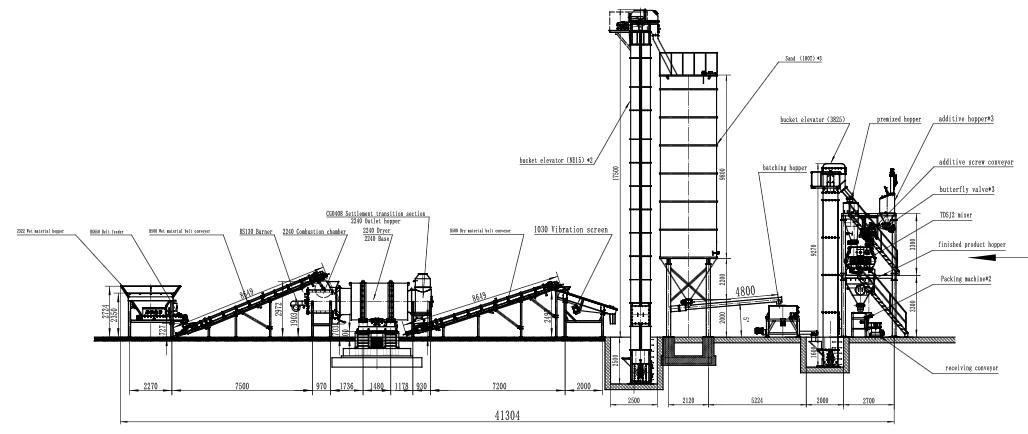

1. Ground-level batching structure (raw materials are batched on the ground, then fed upward into the mixer by bucket elevator)
Low workshop height requirement; easy maintenance; low-leg silos with lower construction cost.
product-1028-434
2. Top-level batching structure (raw materials go into weighing hoppers, and flow directly into the mixer after weighing)
High batch-mixing efficiency; accurate weighing; small footprint.
product-1028-434



Factory Inspection & Quality Assurance (QA)

Each production stage is recorded and submitted through our internal management system for inspection and verification before proceeding to the next stage.
After the equipment is fully manufactured, we conduct complete machine testing, no-load testing, and operational performance checks, including inspections of key components and operating parameters, to ensure stable operation and compliance with the designed performance requirements.
An equipment inspection report can be provided before shipment.



Professional Packing & Marine Protection

As our products are mainly large-scale equipment, they are usually shipped as complete container loads.
We arrange a suitable packing and protection method according to the equipment's size, structure, and shape.
The main equipment is generally shipped without wooden packing, with anti-rust treatment, while vulnerable and precision components are carefully packed in fumigation-free plywood/wooden cases for additional protection.
The equipment is also securely fastened with steel ropes and other securing materials inside the container to minimize the risk of movement, collision, corrosion, or damage during long-distance ocean transportation.



FAQ

1. How many workers are required for the production line?

Normally, 3–5 workers are required to operate the production line:
1 operator operates the forklift to feed raw materials into the sand dryer section.
1–2 workers are responsible for manually placing bags onto the packaging machine.
1 operator operates and monitors the production line from the control room.
1 worker is responsible for routine cleaning and equipment maintenance.

2. Which parts can be installed outdoors?

Under normal circumstances, the bucket elevators and raw material silos can be installed outdoors. The other main equipment is generally recommended to be installed indoors to protect it from weather conditions and ensure stable operation.

3. Installation & Commissioning

We can send our engineers to the customer's site to assist with equipment installation, commissioning, and operator training.
The buyer would be responsible for the engineer's salary/service fee, visa expenses, round-trip international airfare, accommodation, meals, local transportation, safety arrangements, and other related expenses during the engineer's stay at the site.
