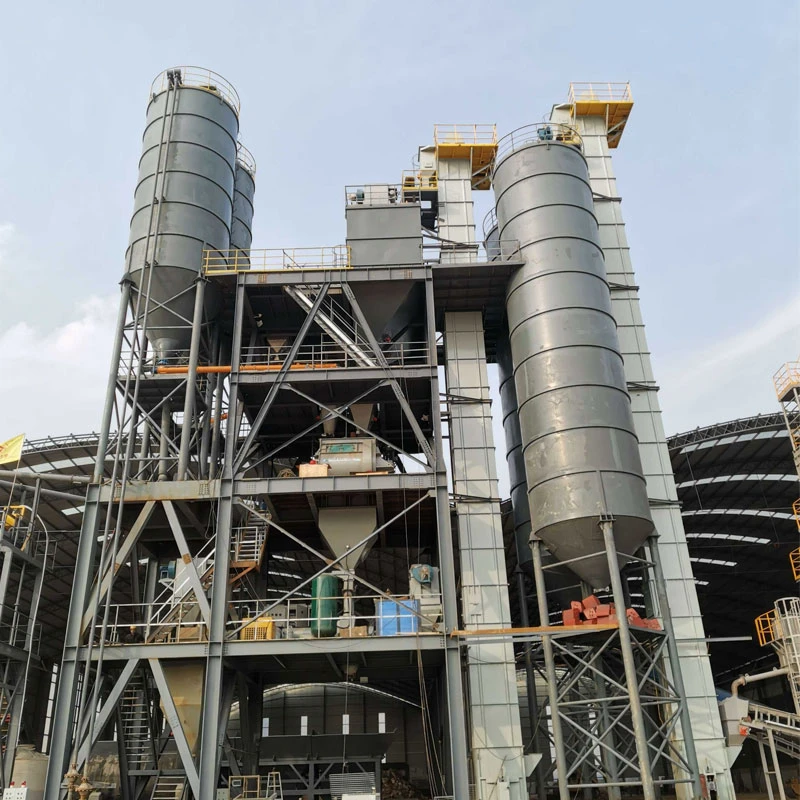

Floor Screed Production Line

Floor Screed Production Line
Product Introduction:
Floor mortar Production Line
Floor mortar is a type of cement-based mortar. It is a specialized material used for leveling floor substrates and enhancing the strength of the floor base, making it suitable for the installation of various types of flooring, tiles, and hardened surface finishes. The required raw materials include cement, sand, cellulose ethers, and other chemical additives.

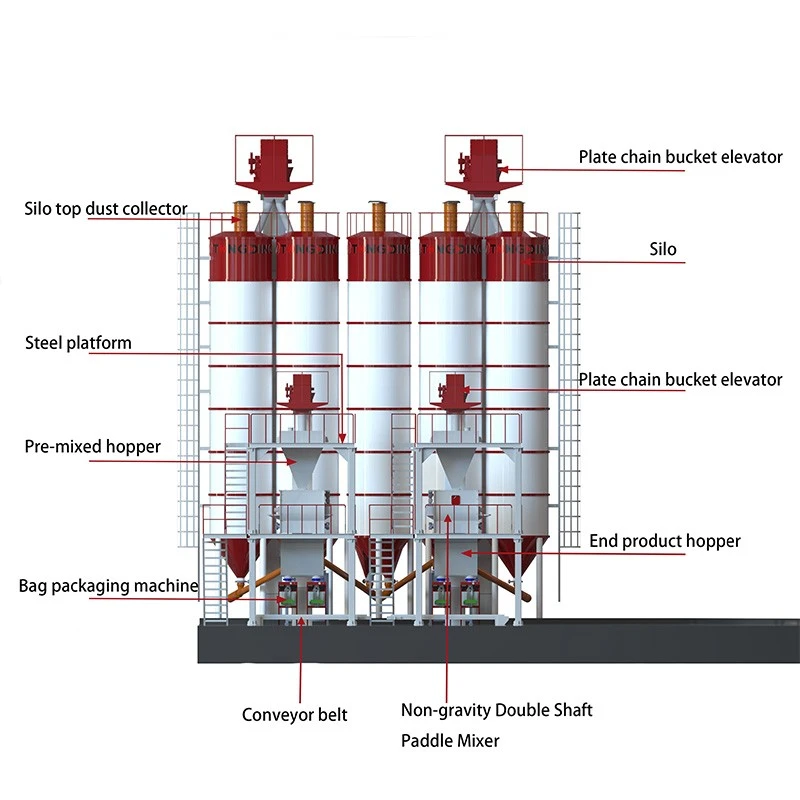

The production line primarily consists of a material lifting system, material storage units, material conveying and batching systems, weighing units, a batch lifting system, a pre-mixing hopper, the main mixer, a finished product packaging system, an automatic palletizing system, a dust collection system, and a PLC-based integrated control system.
Send Inquiry
Description
Technical Parameters

Zhengzhou Tongding Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of floor screed production line in China. We are committed to providing high quality customized products with competitive price. If you're going to buy durable floor screed production line made in China, welcome to get pricelist from our factory. 5 years warranty is available.



Product Introduction

Floor mortar is a high-performance ready-mixed material used for floor leveling, repair, and strengthening. It mainly includes traditional cement-based self-leveling/leveling mortar and modern polyurethane mortar flooring systems, and is widely used in industrial plants, warehouses, parking lots, and commercial spaces. Floor mortar has relatively strict requirements for aggregate particle size and grading. Proper sand grading helps improve the mortar's workability, compactness, strength, and finished surface quality.

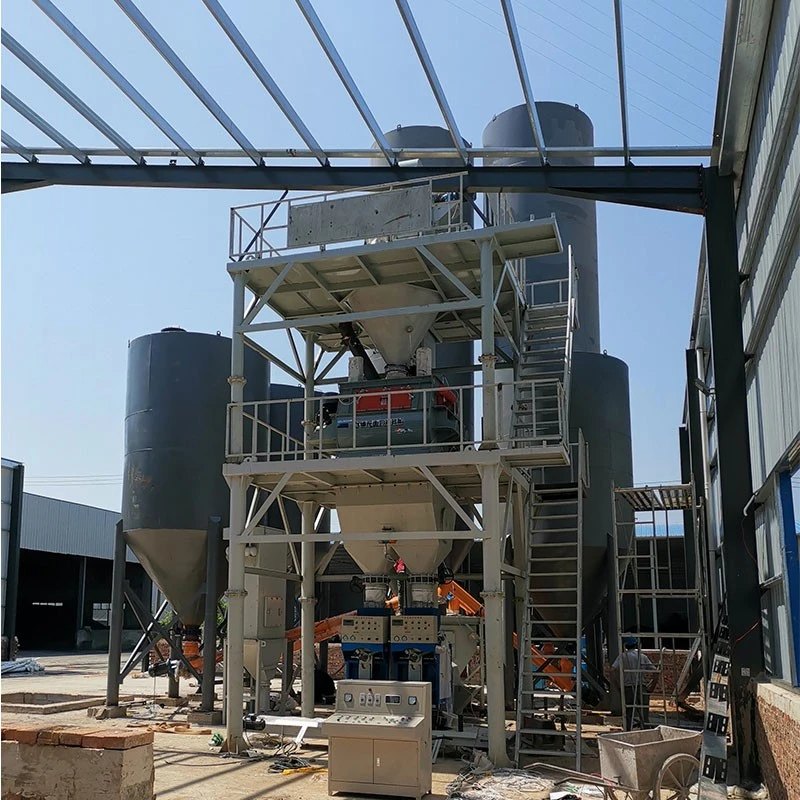

Floor Mortar plant

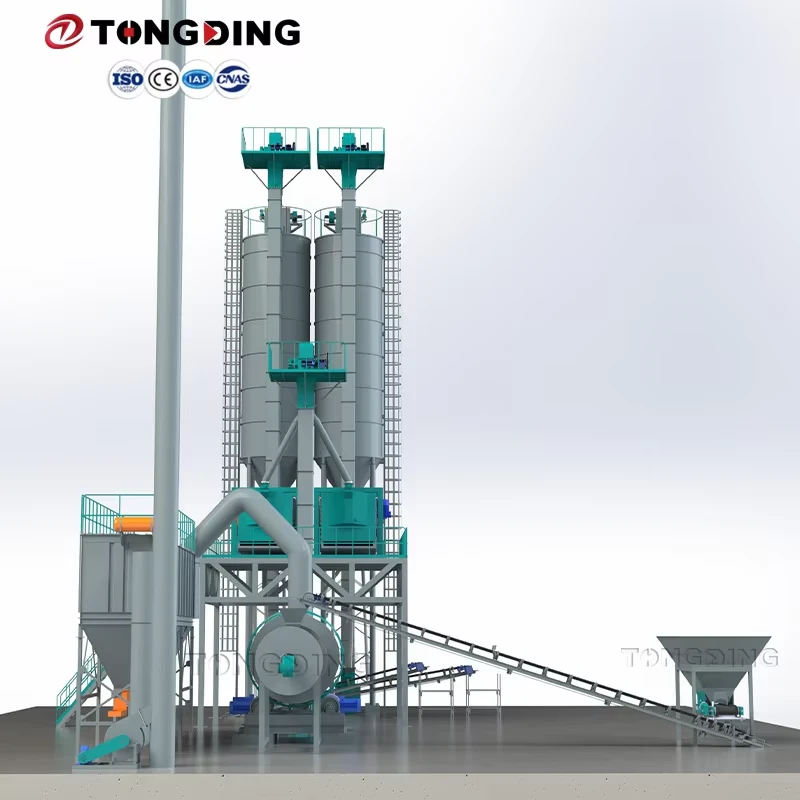

Complete production process

Raw sand drying → sieving sand → raw material storage → precise batching → efficient mixing → automatic packaging → finished floor mortar
Through an integrated production process of screening, grading, precise batching, uniform mixing, and automatic packaging, our floor mortar production line can stably and efficiently produce floor mortar from raw material preparation to finished product packaging and palletizing.



Specification and Parameter

Model

Capacity

(T/H)

Volume

(m3)

Loading Factor

Power

(KW)

Rotary speed (r/min)

Mixing time (min)

Dimension(L*W*H)

(mm)

WSZ2

10-15

2

0.4-0.6

18.5

43

0.5-3

2460*1640*1520

WSZ3

15-25

3

22

2850*1640*1520

WSZ4

25-40

4

30

29

2800*2110*1950

WSZ6

60-120

6

45

3130*2470*2120

WSZ10

100-170

10

55

3600*3000*2510

The type of mortar that can be produced by a machine

1.Masonry mortar

2.Plastering mortar(bottom)

3.Floor mortar

4.Adhesive mortar(stupid board glue)

5. Wall tiles adhere to mortar

6.Caulking agent mortar(black)

7.Caulking agent mortar(cream-coloured)

8.Caulking agent mortar(white)

9.Seaming agent mortar

10.General non-shrinkage grouting material

11.Thermal mortar

12.Glue for tile ,good cement

13.Self-leveling mortar

14.Inter facial mortar

15.Cement plaster mortar

16.Whitewashed plaster(bottom)

17.Waterproof paint

18.External putty powder

19.Internall wall putty powder

20.Emulsion varnish

21.Really stone paint

22.Other powder material



Item

Specification

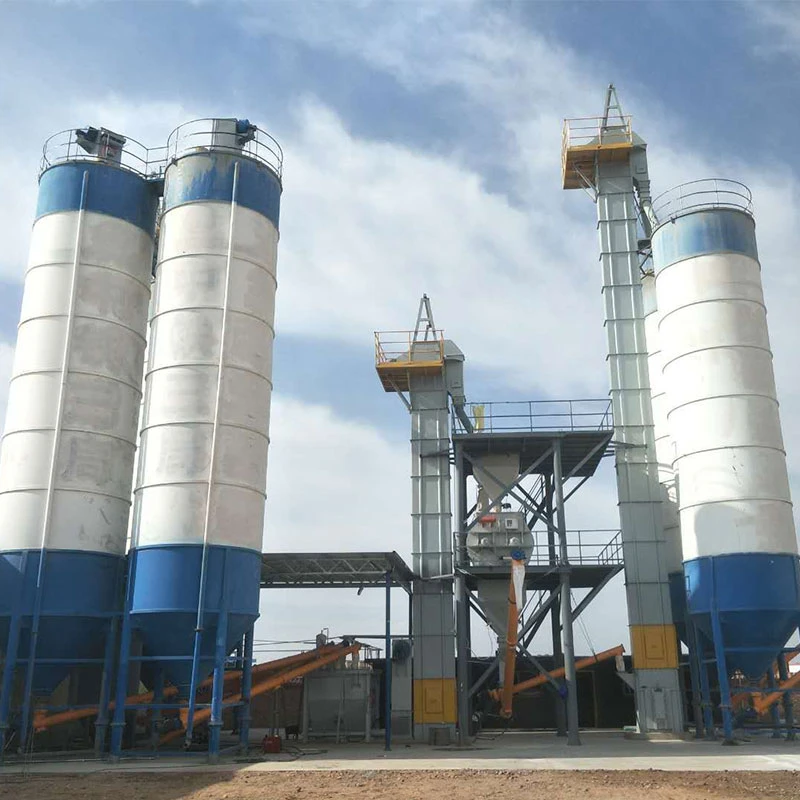

Floor Screed Mortar plant



Equipment Name

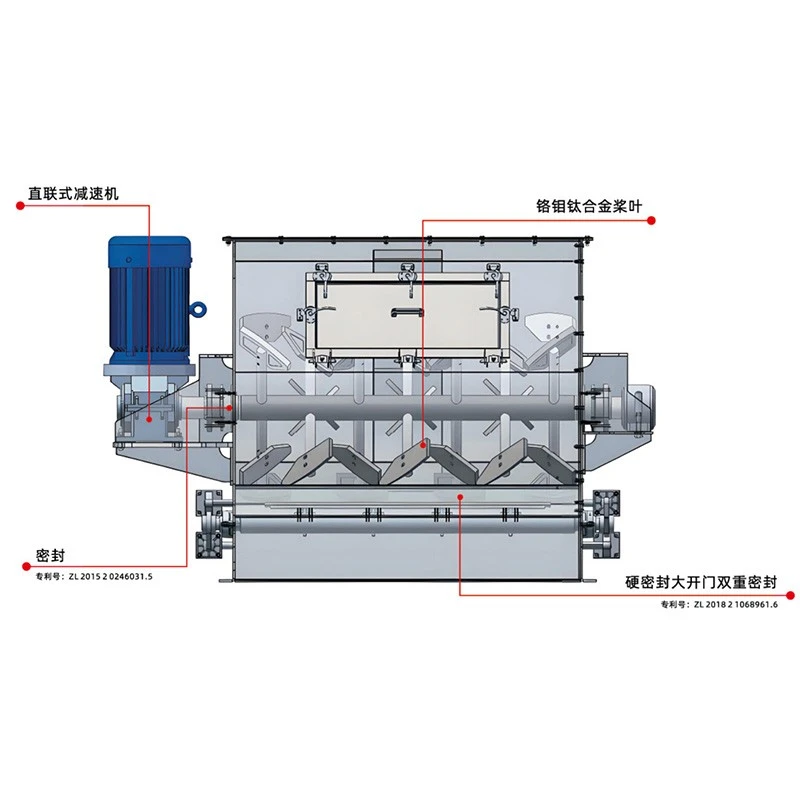

Twin Shaft Paddle Gravityless Mixer

Volume

2 m³

Effective Filling Capacity

0.4–0.6*

Batch Capacity

1,000 kg/batch

Mixing Cycle Time

0.5–3 min/batch, adjustable according to different material characteristics

Motor Power

18.5 kW

Mixing Shafts

2 pcs

Paddle Blades

Twin-shaft paddle type

Overall Dimensions (L × W × H)

2460 × 1640 × 1520 mm

Breathing Bag

325 × 1 m

Body Plate Thickness

8 mm

Head Plate Thickness

8 mm

Paddle Blade Thickness

20 mm

Electric Lubrication Pump

4WBD-24V × 0.05 kW

Air Cylinder

Equipped

Lubrication Oil Cup

Equipped

Oil-Water Separator

Equipped

Feeding Port

Equipped

Automatic Oiling & Lubrication System

Equipped

Imported Short Section

Equipped

Dust Collection Cage

Equipped

Dust Collection Bag/Hopper

Equipped



The advantages of our dual axis non gravity mixing equipment



High mixing efficiency

The dual axis non gravity structure can mix materials evenly in a short period of time, resulting in high product quality.




Durable and wear-resistant

Key components such as mixing blades and lining are made of high-quality alloy steel, which can be used for more than ten years.




Energy saving and stability

Optimize the design to reduce energy consumption, ensuring stable operation even under heavy loads.




Customizable

We can adjust production capacity, configuration, and control systems to meet specific production needs of customers.





FAQ

Minimum investment scale for Q floor mortar production line;

A small investment/manual batching optional simple production line, 1 ton per hour, fully automatic/automatic weighing and feeding, with a minimum of 5 tons per hour available. Minimum height of Q factory building;

A can be designed according to the height of the customer's factory building.

Does Q support later expansion.

A can design a solution based on later expansion, and our production line is modular in design, making later expansion very simple.
