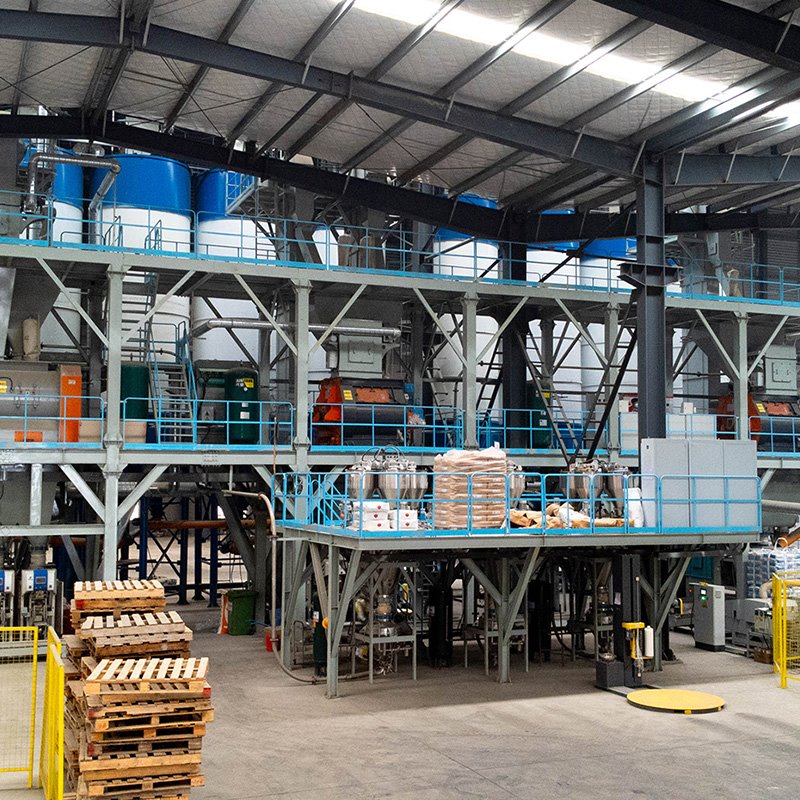

Waterproof Mortar Production Line

Waterproof Mortar Production Line
Product Introduction:

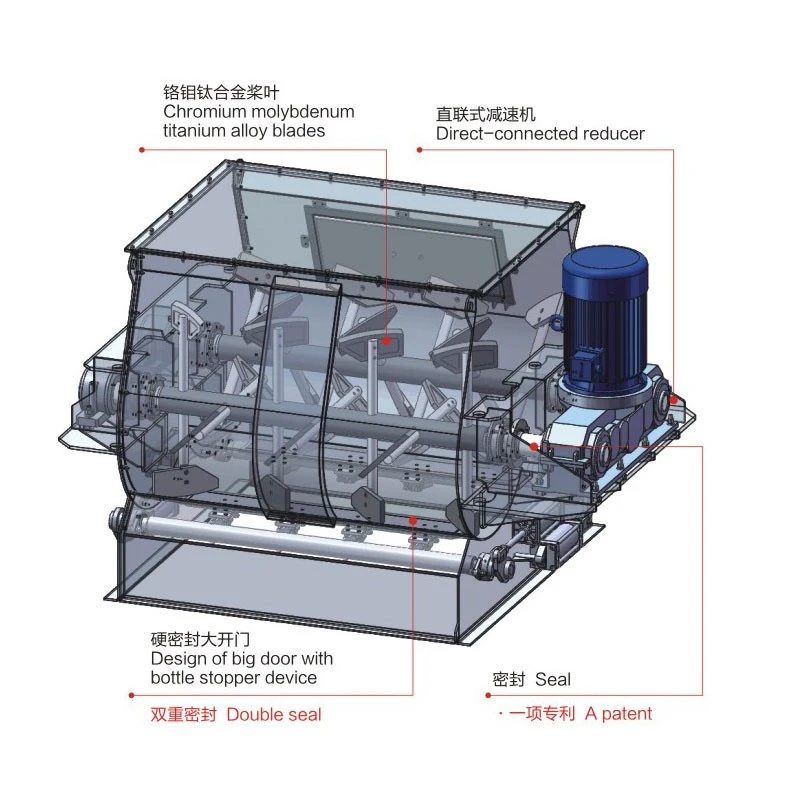

Waterproof mortar is a type of specialty mortar designed primarily for areas prone to water accumulation and high humidity, such as bathrooms, kitchens, balconies, and basements. Serving as a foundational waterproofing layer, it addresses the leakage issues common with standard cement mortar, provides a solid base for subsequent finishes or waterproofing membranes, and meets the fundamental waterproofing requirements of both residential renovations and construction projects. The raw materials involved include cement, sand, redispersible polymer powder, cellulose ether, calcium stearate, and chemical additives such as water-repellent agents. The production line utilizes PLC control, ensuring high automation and clear visibility of every processing step. Given the mortar's specific characteristics, the system employs either a twin-shaft paddle "zero-gravity" mixer or a ploughshare mixer.
Send Inquiry
Description
Technical Parameters

Zhengzhou Tongding Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of waterproof mortar production line in China. We are committed to providing high quality customized products with competitive price. If you're going to buy durable waterproof mortar production line made in China, welcome to get pricelist from our factory. 5 years warranty is available.



Product Introduction

The Waterproof Mortar Production Line is an automated production system specially designed for manufacturing various types of cement-based waterproof mortar, polymer-modified waterproof mortar, two-component cementitious waterproofing products, and other dry-mixed waterproof materials.

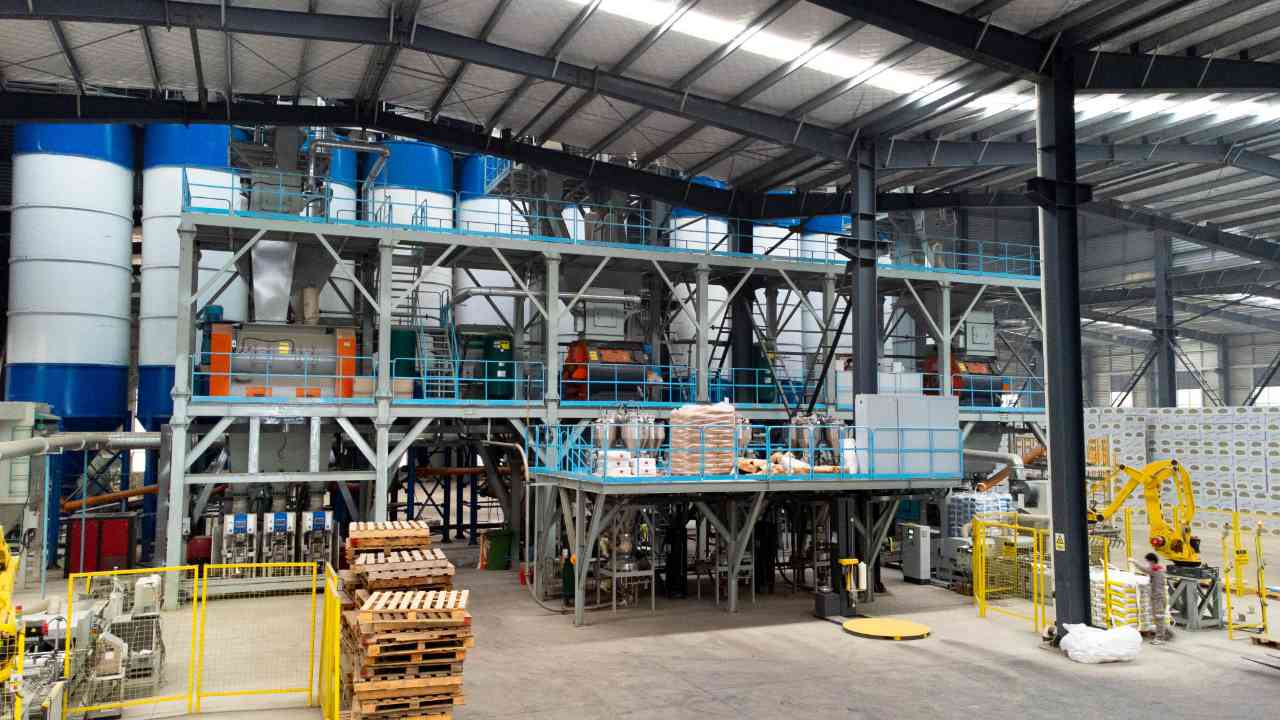

specialty mortar production line



Main Production Process

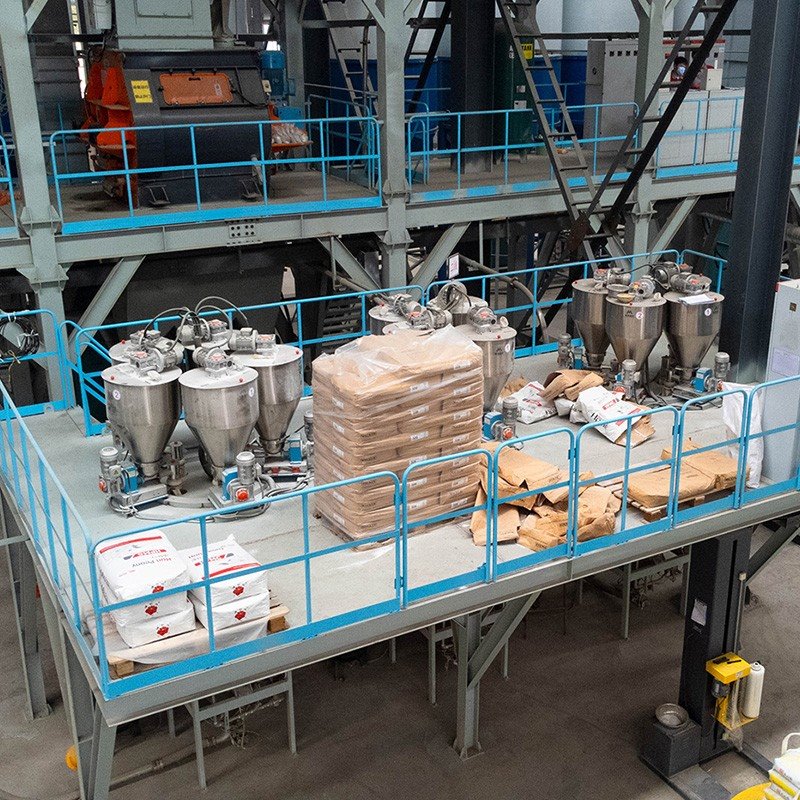

The production line integrates raw material storage, conveying, precise weighing, automatic batching, efficient mixing, finished product storage, and automatic packing.
It accurately weighs and uniformly mixes cement, quartz sand, calcium carbonate, and functional additives according to the specified formulation, producing dry-mixed waterproof mortar with excellent water resistance, adhesion, crack resistance, and workability.



Main Raw Materials

Depending on the specific type and formulation of the waterproof mortar, the typical raw materials include:

Cement

The primary binder, providing basic mechanical strength.

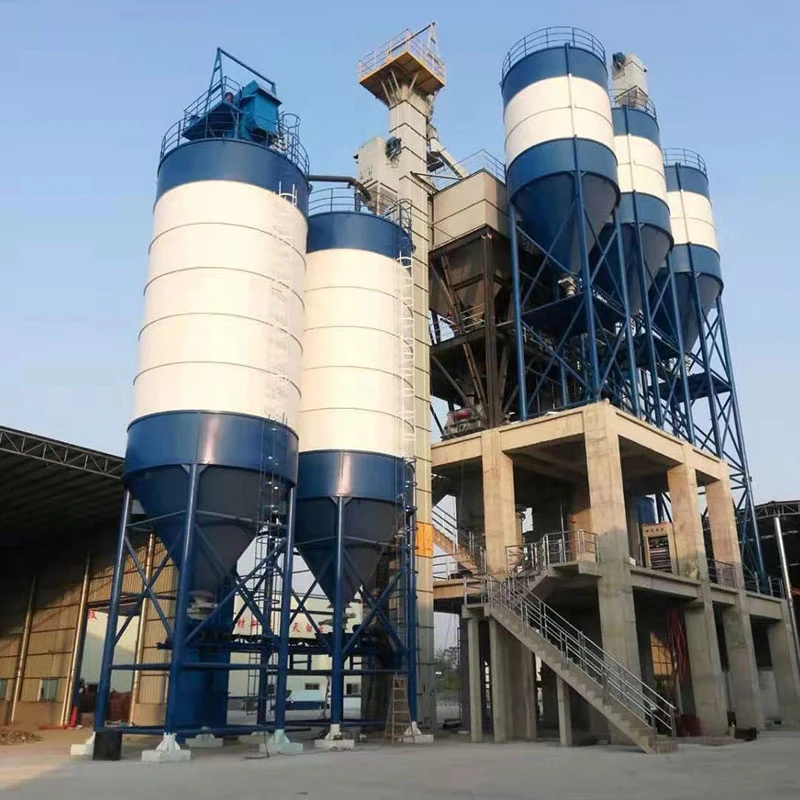

dry mortar plant



Quartz Sand / Dry Sand

Provides the aggregate skeleton and improves mechanical properties.

Calcium Carbonate / Limestone Powder

Improves filling properties and workability.

Redispersible Polymer Powder (RDP)

Improves adhesion, flexibility, and crack resistance.

Cellulose Ether (HPMC)

Improves water retention, workability, and sag resistance.

Starch Ether

Improves application feel and slip resistance.

Hydrophobic Agent / Waterproofing Additives

Enhances the waterproof performance of the finished product.

Other Functional Additives

Used to adjust setting time, strength, flexibility, and other performance characteristics according to product requirements.



Specification and Parameter

Model

Capacity

(T/H)

Volume

(m3)

Loading Factor

Power

(KW)

Rotary speed (r/min)

Mixing time (min)

Dimension(L*W*H)

(mm)

WSZ2

10-15

2

0.4-0.6

18.5

43

0.5-3

2460*1640*1520

WSZ3

15-25

3

22

2850*1640*1520

WSZ4

25-40

4

30

29

2800*2110*1950

WSZ6

60-120

6

45

3130*2470*2120

WSZ10

100-170

10

55

3600*3000*2510

The type of mortar that can be produced by a machine

1.Masonry mortar

2.Plastering mortar(bottom)

3.Floor mortar

4.Adhesive mortar(stupid board glue)

5. Wall tiles adhere to mortar

6.Caulking agent mortar(black)

7.Caulking agent mortar(cream-coloured)

8.Caulking agent mortar(white)

9.Seaming agent mortar

10.General non-shrinkage grouting material

11.Thermal mortar

12.Glue for tile ,good cement

13.Self-leveling mortar

14.Inter facial mortar

15.Cement plaster mortar

16.Whitewashed plaster(bottom)

17.Waterproof paint

18.External putty powder

19.Internall wall putty powder

20.Emulsion varnish

21.Really stone paint

22.Other powder material



Applicable Products

  • Cement-Based Waterproof Mortar
  • Polymer-Modified Waterproof Mortar
  • Flexible Waterproof Mortar
  • Rigid Waterproof Mortar
  • Waterproof Repair Mortar
  • 2K Cementitious Waterproofing System

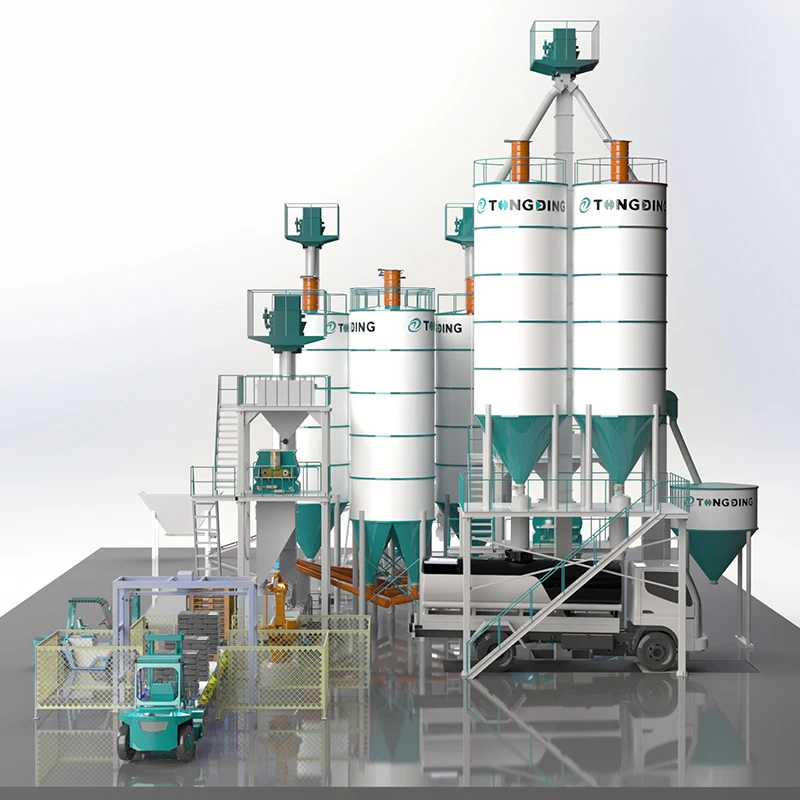

dry-mortar-plant



Packing System

The production line can be equipped with different packing and palletizing solutions according to the customer's requirements:
1. Valve Bag Packing Machine
Impeller-Type Packing Machine
Air-Fluidized Packing Machine
Ultrasonic Packing Machine
2. Open-Mouth Bag Packing Machine
3. Automatic Bagging Machine
4. Robotic Palletizer
5. Stretch Wrapping Machine

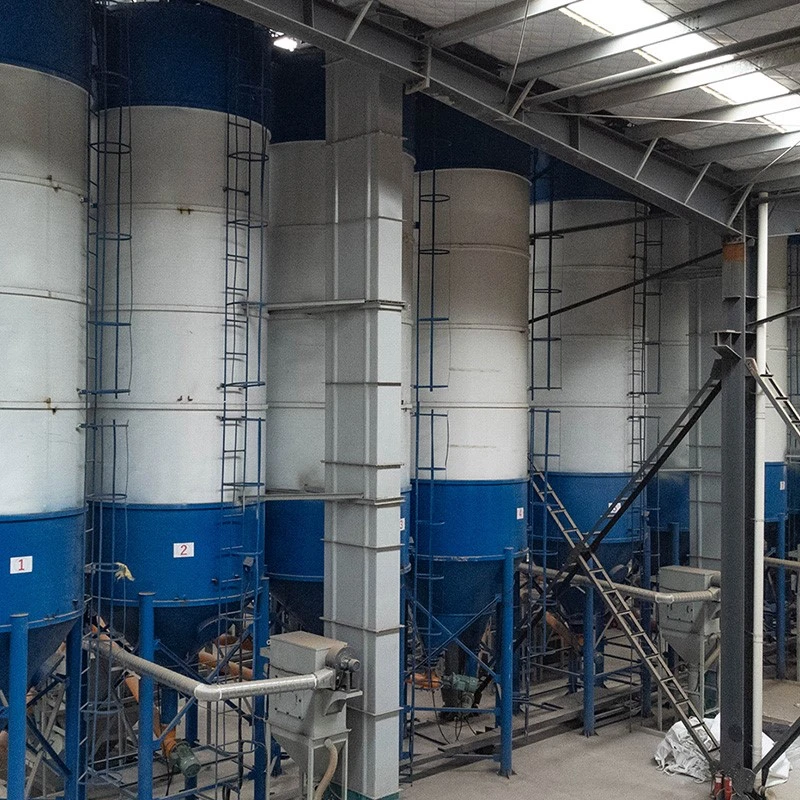

cement-based waterproof mortar production line
