Wall Putty Production Line

Wall Putty Production Line
Product Introduction:
Putty powder is a type of specialized mortar. Serving as a crucial base-layer material for wall finishing, it is used for the fine leveling of both interior and exterior walls—a core step prior to the application of finishes such as paint or wallpaper. It effectively fills minor surface imperfections and gaps, creating a smooth, solid, and highly adhesive foundation for subsequent decorative work; this directly determines the aesthetic appeal and durability of the final finish. Required raw materials include hydrated lime powder, ground calcium carbonate, white cement, cellulose ether, redispersible polymer powder, starch ether, and other chemical additives.

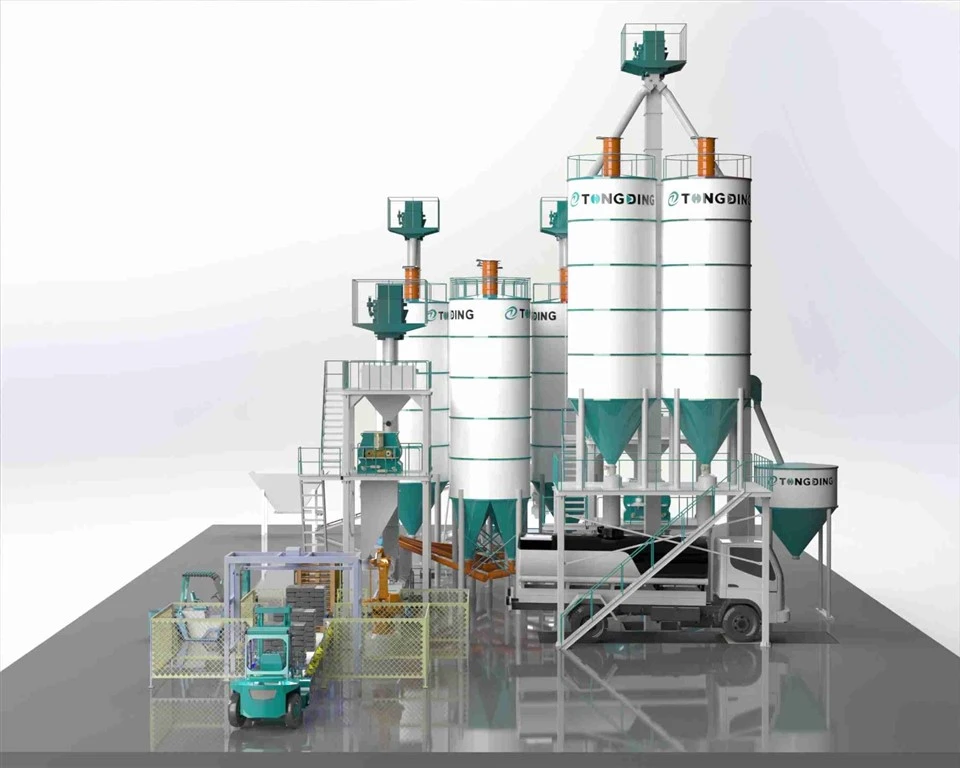

The production line primarily consists of a material lifting system, storage units, material conveying and batching systems, weighing units, a batch lifting system, a pre-mixing hopper, the main mixer, a finished product packaging system, an automatic palletizing system, a dust collection system, and a PLC-based integrated control system.
Send Inquiry
Description
Technical Parameters

Zhengzhou Tongding Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of wall putty production line in China. We are committed to providing high quality customized products with competitive price. If you're going to buy durable wall putty production line made in China, welcome to get pricelist from our factory. 5 years warranty is available.



Product Introduction

Wall Putty is a dry mixed powder material widely used in the treatment of building wall base, mainly used for wall leveling, filling small defects, improving surface smoothness, and providing a good base for subsequent coating construction.


Putty powder is usually composed of functional additives such as cement or gypsum, heavy calcium carbonate, quartz powder/fine sand, cellulose ether, and redispersible latex powder. Due to the small amount of additives used but their significant impact on product performance, it is necessary to ensure accurate measurement, thorough mixing, and stable product quality during the production process.

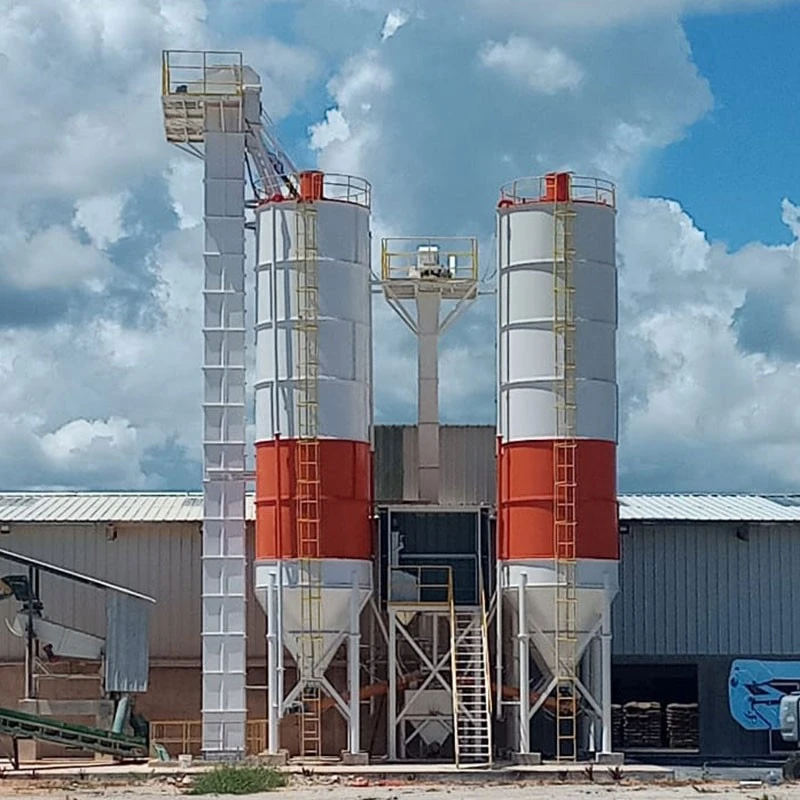

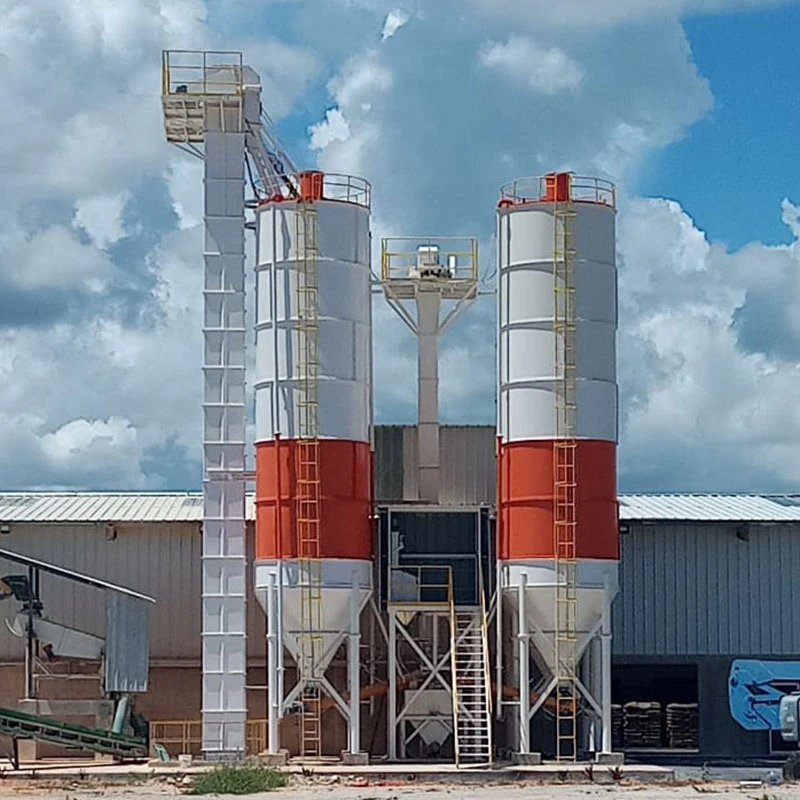

Putty powder production lineproduct-15-15​



Product Features

High precision ingredients to ensure formula stability

Putty powder requires a high amount of additives such as cellulose ether and rubber powder. The production line adopts a precise metering system to ensure that cement, heavy calcium and various functional additives are accurately added according to the set formula, reducing quality fluctuations between batches.

Efficient and uniform mixing to enhance product performance

By using efficient dry powder mixing equipment, the raw materials with different particle sizes and dosages are fully dispersed, ensuring that the putty powder has good workability, adhesion, water retention, and surface smoothness.

Automated production to improve production efficiency

From raw material storage, transportation, measurement, mixing to finished product packaging, automated configuration can be carried out according to customer production capacity requirements, reducing manual operations, improving production efficiency and stability of the production process.

Flexible adaptation to various putty products

The same production line can produce different types of products according to the formula and process requirements, such as interior wall putty, exterior wall putty, waterproof putty, water-resistant putty, and other functional dry powder materials, to meet the product needs of different markets.



Flow chart explanation

Drying → Lifting→ Batching → Lifting→ Mixing→ Weighing and packing

Drying: dry the wet materials.
Lifting: lift the raw materials into the silos through thr bucket elevator or pnurmatic conveying system.
Batching: Through screw conveyor, convey materials to weighing batching bin for weighing and batching.
Lifting: After batching all materials, they will be lifted into premixed bin by bucket elevator.
Mixing: The materials in premixed bin fall down into twin shaft mixer through the discharge port for mixing.
Weighing and packing: Well mixed dry mortar falling into finished product bin will be discharged into weighing and packing machine.
Notice: It can be operated by just 4 persons to package; The whole mixing system can operate continuously.

3D 1



Specification and Parameter

Model

Capacity

(T/H)

Volume

(m3)

Loading Factor

Power

(KW)

Rotary speed (r/min)

Mixing time (min)

Dimension(L*W*H)

(mm)

WSZ2

10-15

2

0.4-0.6

18.5

43

0.5-3

2460*1640*1520

WSZ3

15-25

3

22

2850*1640*1520

WSZ4

25-40

4

30

29

2800*2110*1950

WSZ6

60-120

6

45

3130*2470*2120

WSZ10

100-170

10

55

3600*3000*2510

The type of mortar that can be produced by a machine

1.Masonry mortar

2.Plastering mortar(bottom)

3.Floor mortar

4.Adhesive mortar(stupid board glue)

5. Wall tiles adhere to mortar

6.Caulking agent mortar(black)

7.Caulking agent mortar(cream-coloured)

8.Caulking agent mortar(white)

9.Seaming agent mortar

10.General non-shrinkage grouting material

11.Thermal mortar

12.Glue for tile ,good cement

13.Self-leveling mortar

14.Inter facial mortar

15.Cement plaster mortar

16.Whitewashed plaster(bottom)

17.Waterproof paint

18.External putty powder

19.Internall wall putty powder

20.Emulsion varnish

21.Really stone paint

22.Other powder material



Main advantages of the equipment

01/

Factory pre installation to reduce customer installation costs
The equipment is assembled and welded as a whole before leaving the factory.
After arriving at the customer's factory, installation can be carried out directly to reduce on-site installation workload.
Shorten installation and debugging time, reduce labor and installation costs.

02/

High strength ingredient hopper
Made of 14 # international channel steel, the structure is sturdy and stable.
Equipped with a 5.5 kW motor, the power is sufficient.
Using well-known brand sensors, with high measurement accuracy and small errors.
Suitable for long-term continuous production use.

03/

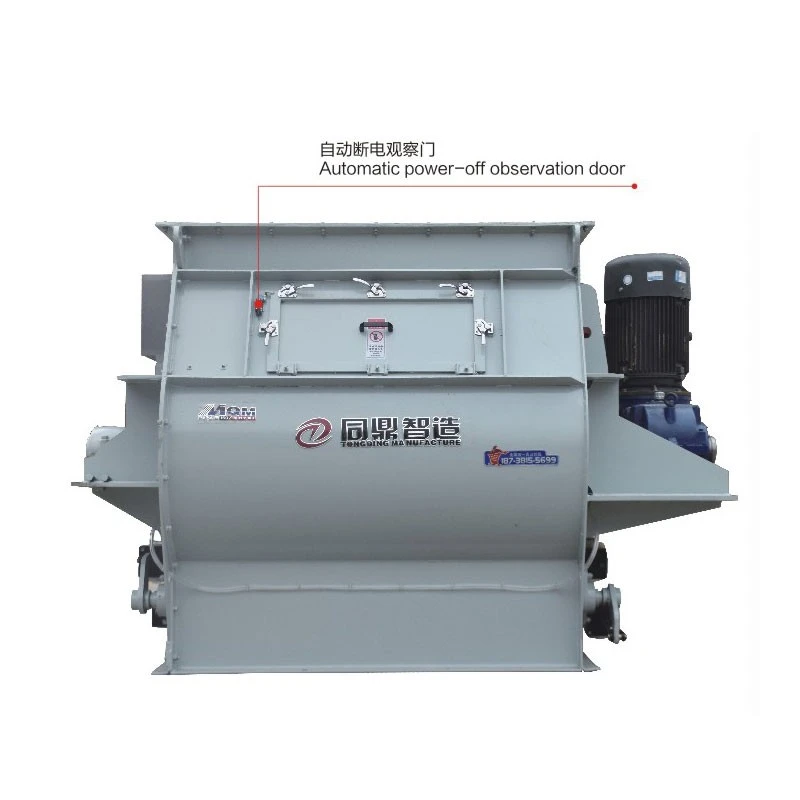

High reliability mixer
The spindle runout is controlled within 3 threads for more stable operation.
Adopting a patented spindle end face sealing structure, combined with a large door opening design, the sealing performance is good, which can effectively prevent material leakage.
Adopting a four cylinder linkage automatic door opening structure, opening and closing doors is more convenient and stable.
The mixer adopts centrifugal direct connection technology speed reducer, which ensures that the two main shafts do not collide with each other during operation, improving the reliability of equipment operation.

04/

Automatic lubrication system
Equipped with an electric automatic lubrication device, it can perform timed and quantitative automatic refueling according to the set program.
Automatically replenish lubricating oil to avoid equipment failure caused by oil shortage.
The lubrication pump has a memory function, so even if there is a power outage, it will not cause program confusion and can continue to lubricate according to the set program.
Reduce manual maintenance workload and improve equipment usability.

05/

The spindle seal is reliable
The spindle adopts patented sealing technology.
Effectively prevent powder leakage and reduce the risk of dust entering key components such as bearings.
Improve the stability and service life of equipment operation.
