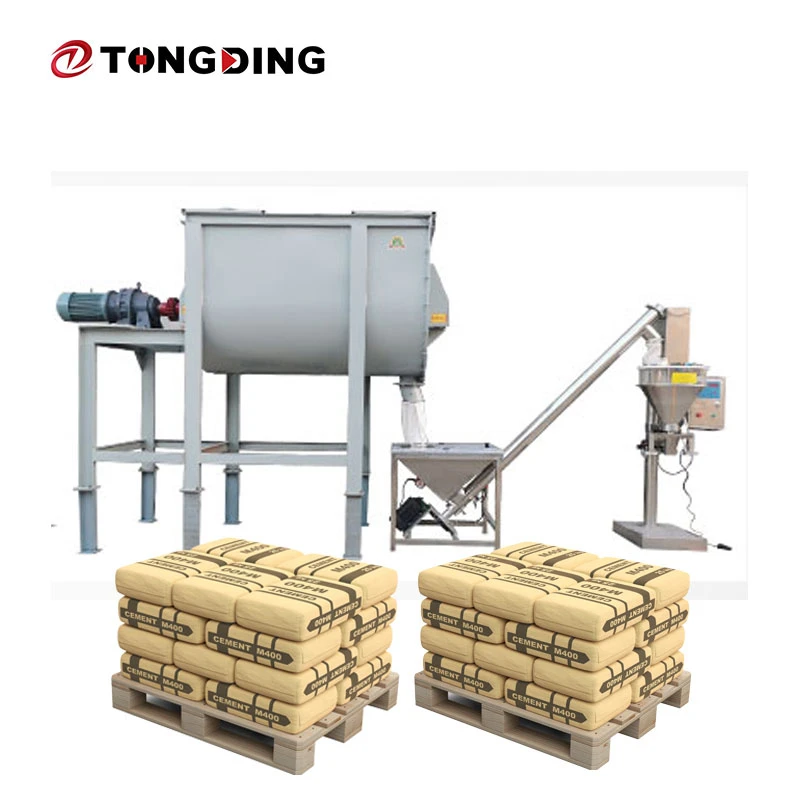

Zhengzhou Tongding Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of mini1000 semi-automatic dry mortar machine in China. We are committed to providing high quality customized products with competitive price. If you're going to buy durable mini1000 semi-automatic dry mortar machine made in China, welcome to get pricelist from our factory. 5 years warranty is available.
Product Overview
Equipment List and Specifications
Model 1000 Simple Dry-Mix Mortar Production Line – Equipment List
|
No. |
Equipment Name |
Model |
Specifications/Parameters |
Power (kW) |
Quantity |
Remarks |
|
1 |
Primary Feeder |
TD-LX-165 |
Diameter 165 × 3200 mm; feed chute 500 × 500 mm |
3 |
1 |
Labyrinth seal; includes grease line and clean-out door |
|
2 |
Model 1000 Dry Powder Mixer |
G-LH-L1000 |
Drum: 1050×1900mm; Volume: 1650L; Overall: 3300×1050×2000mm |
7.5 |
1 |

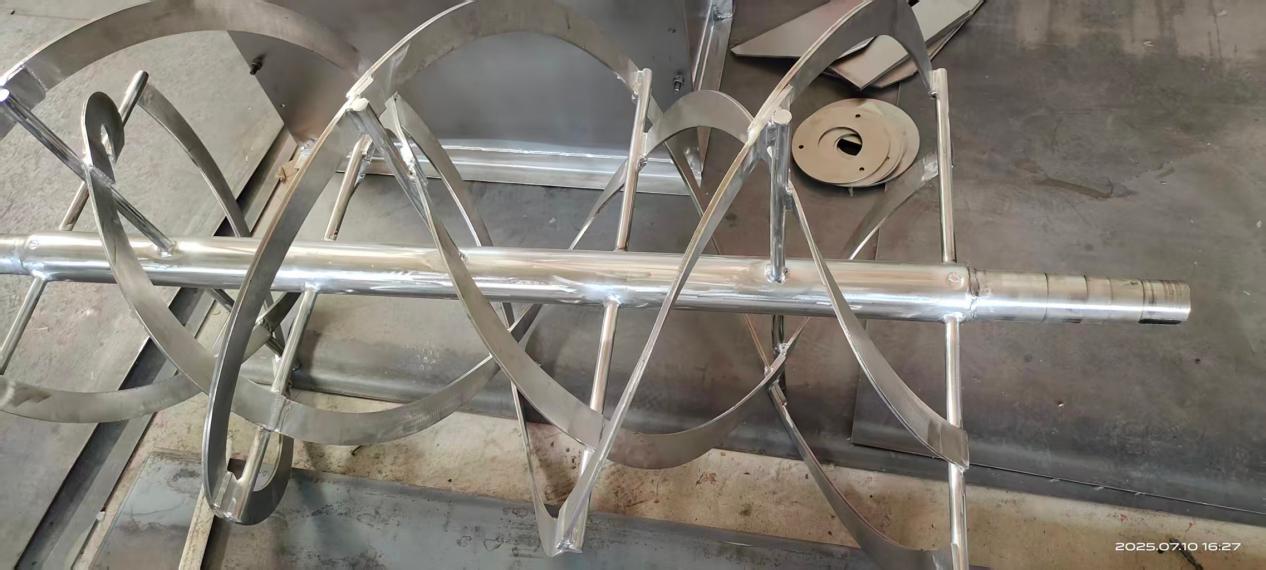

Ribbon-type mixing; patented sealing technology |
|
3 |
Manual Butterfly Valve |
TD-QD |
Diameter: 165mm |
0 |
1 |
Controls mixer discharge |
|
4 |
Secondary Material Lifter |
TD-LX-165 |
Diameter: 165×3000mm |
3 |
1 |
Lifts finished product; includes clean-out hatch |
|
5 |
Finished Product Silo |
TDG-CP-dk |
Diameter: 1600×2850mm; Volume: 1.5m³; Discharge height: 1200mm |
0 |
1 |
Includes air vent and air-purge device |
|
6 |
Fully Automatic Valve-Bag Weighing Packer |
TD-50-B |
1100×670×1030mm; 200kg load cell |
3 |
1 |
Imported A/D chip; stainless steel switch |
|
7 |
Simple Dust Collector |
TD-CC-JY |
New-style bag filter; includes dust hood |
3 |
1 |
Fan: Y4-72 |
|
8 |
Air compressor |
TD-KY |
0.9m³ |
7.5 |
1 |
Provides pneumatic power |
|
9 |
Control cabinet |
TD-KZG |
6-channel control cabinet |
0 |
1 |
Centralized control for the entire line |
- Total combined power: 27kW
Production time specification
1) Mixer 15-20 minutes, producing a batch.
2) Produce 1-3 tons per batch.
3) Stir the main machine and stir the material for 3-5 minutes. Stir well.
Instructions for use by workers:
1. Under normal circumstances, 2-3 people can be fully produced.
2. 2 people feeding, 1 people mixing.
3. The production line has modest requirements regarding factory ceiling height; a clearance of 4 meters or more is sufficient.

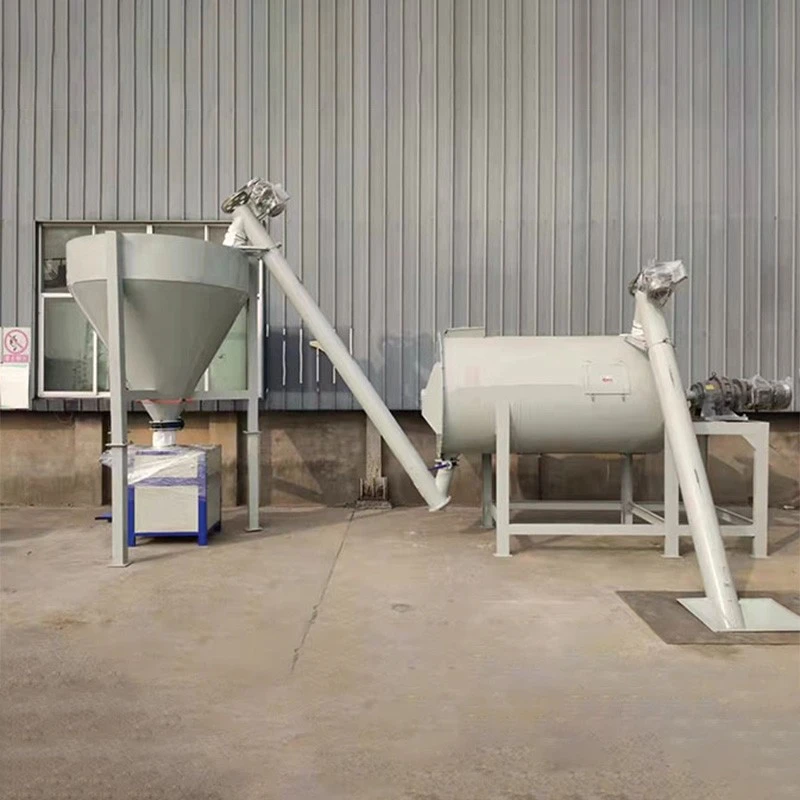

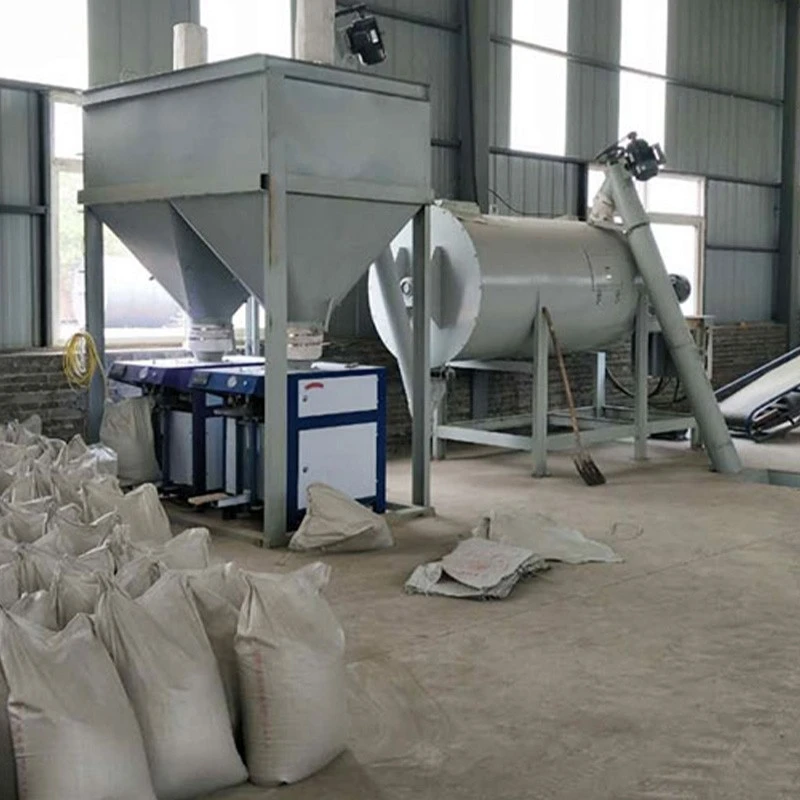

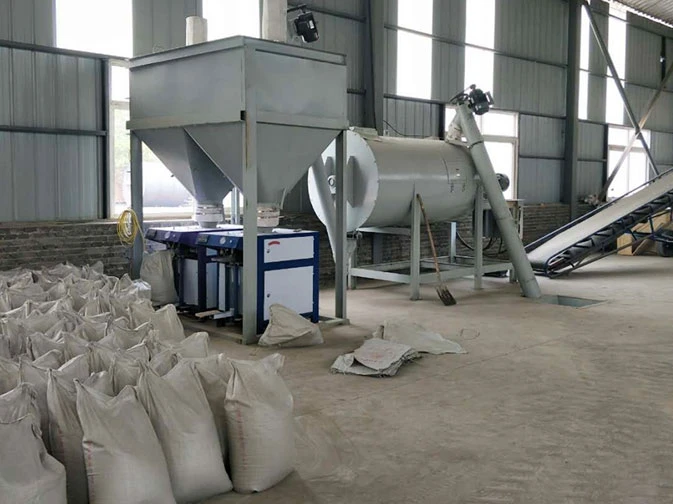

4. Process overview: Raw materials are supplied in bags and fed manually; mixing is performed by machine, followed by automatic packaging. Finished products are packaged in valve bags.
5. Footprint: 21 m².
FAQ (Frequently Asked Questions)
1. What products is the Model 1000 production line suitable for?
It is suitable for producing basic dry-mix products such as standard dry-mix mortar, putty powder, gypsum plaster, and masonry mortar. Compared to the Model 500, it offers double the production capacity, making it ideal for larger-scale production needs.
2. In what form are the raw materials supplied?
Raw materials are supplied in bags and can be fed manually; there is no need for large storage silos.
3. How are the finished products packaged?
Automatic valve-bag packaging is used, offering high precision and speed. Both the Model 1000 and Model 500 utilize the same TD-50-B fully automatic valve-bag weighing and packaging machine.
4. What are the main differences between the Model 1000 and the Model 500?
The Model 1000 has a batch output of 1 ton (compared to 0.5 tons for the Model 500) and an hourly capacity of approximately 3 tons (compared to approximately 1.5 tons for the Model 500).
5. What is the difference in warranty coverage between the "Simple" line and the "Standard" line?
The "Simple" line comes with a one-year warranty.
