Silicon Carbide Triple-Pass Rotary Dryer
Solving Equipment Wear Issues, Expanding Industrial Applications

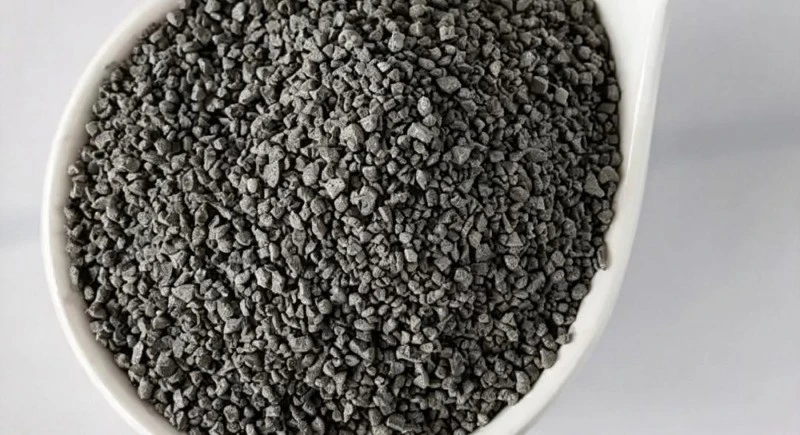

Silicon carbide (SiC) is a hard inorganic material with stable physical and chemical properties. It is a core raw material for industrial wear-resistant, refractory, and anti-corrosion applications. Its Mohs hardness ranges from 9.2 to 9.5, second only to diamond. It offers excellent wear resistance, impact resistance, and compression resistance, while also withstanding high temperatures, oxidation, and acid-alkali corrosion.
Silicon carbide comes in two types. Natural silicon carbide is garnet-based, with impurities and poor particle uniformity, used mainly in low-end applications. Synthetic silicon carbide is produced at temperatures above 2000°C, with high purity and uniform particle size – the mainstream industrial choice.
Industry Pain Points: Severe Wear, Uneven Drying, Frequent Downtime
Silicon carbide is a highly abrasive material with strong particle friction and scouring action. Conventional drying equipment faces multiple issues during extended operation.
1. Severe equipment wear
The inner cylinder wall wears out, lifting structures deform, and core components require frequent replacement, driving up maintenance costs.
2. Uneven material distribution
Conventional lifting structures fail to break up agglomerated particles, creating drying dead zones and insufficient heat exchange.
3. Unstable moisture content
Inconsistent moisture levels fail to meet precision industrial standards, limiting stable large-scale production.
These issues lead to low drying efficiency, rising maintenance costs, and remain persistent pain points in silicon carbide drying.
Precision Solution: Wear-Resistant Materials + Patented Structural Design

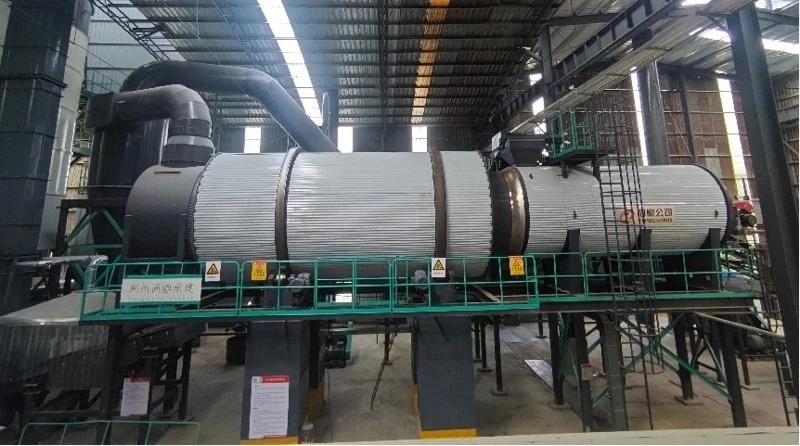

Tongding's triple-pass rotary dryer is custom-optimized for silicon carbide drying, addressing challenges from both material selection and structural design.
Material Selection – All material-contact components are made of NM400 high-strength wear-resistant alloy steel. This material offers far superior scouring and impact resistance compared to ordinary manganese or carbon steel. NM400 steel delivers 4 to 7 times longer service life than conventional materials, with lower maintenance costs. It resists continuous wear from silicon carbide, reduces component replacement frequency, ensures continuous operation, and improves equipment stability.

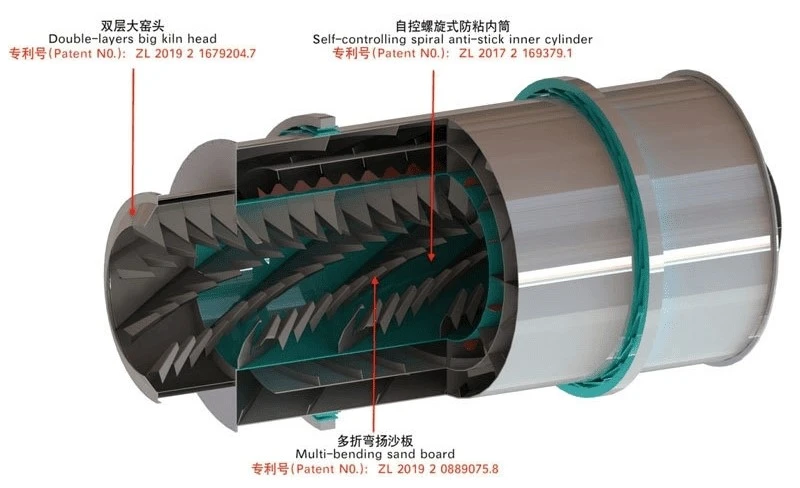

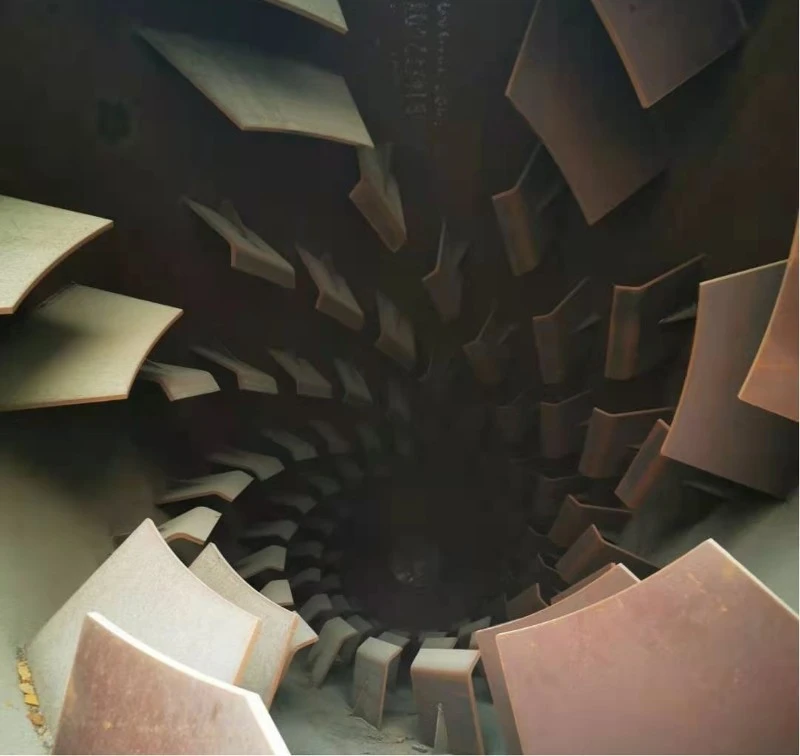

Structural Design – The patented multi-bend lifting plate replaces traditional flat lifting structures, creating a waterfall-like three-dimensional material curtain. This effectively breaks up agglomerated material, eliminates drying dead zones, and maximizes heat exchange between particles and hot air. Finished product moisture is consistently controlled at 0.5% or below.
Tongding Commitment: Money-back if output falls short. 10%-30% energy savings.
High-Value Applications Across Multiple Industries
After professional drying, silicon carbide maintains stable properties and delivers value across multiple sectors.
Industrial Flooring – For factories, warehouses, and garages – compression-resistant, anti-slip, and durable.
Abrasives – For grinding wheels, sandpaper, and polishing materials – high precision and low material loss.
Refractories – For refractory bricks and kiln linings – adapts to high-temperature metallurgical operations.
Sandblasting – For steel structure surface preparation – high efficiency rust removal.
Hydraulic Engineering – For anti-corrosion coatings – acid and alkali resistance.
Precision Casting – For casting auxiliary materials – high purity and stability.
Wastewater Treatment – For filter media – high filtration efficiency.
Silicon carbide spans multiple industries including metallurgy, machinery, construction, chemical, and environmental protection. With its excellent cost-performance ratio, it has become a highly versatile basic hard raw material with significant industrial value and market potential.
