Mobile Concrete Mixing Plant

Mobile Concrete Mixing Plant
Product Introduction:
Tongding HZY60/90 mobile mixing plant. Fully assembled mobile concrete batching plant consists all commercial concrete production facility mounted onto one trailer body. Aggregate batching,aggregate weighing, mixing and powder silos are perfectly combined, when the truck is power-connected at the construction site, you can make ready mix concrete immediately, convenient and quick. Especially suits for concrete projects which has short construction time or frequent travel, it really is a portable "plant-on-wheels". The driving speed can reach 50–60 km/h (31–37 mph) on accessible road condition.
Send Inquiry
Description
Technical Parameters

Zhengzhou Tongding Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of mobile concrete mixing plant in China. We are committed to providing high quality customized products with competitive price. If you're going to buy durable mobile concrete mixing plant made in China, welcome to get pricelist from our factory. 5 years warranty is available.



Mobile Concrete Mixing Plant

1. Tongding HZS60 and HZY90 mobile concrete mixing plants are equipped with JS1000 or JS1500 twin-shaft forced mixers. They function as mobile concrete production facilities that highly integrate all the capabilities of a traditional stationary plant onto a trailer-towed mobile platform. Their core advantages are high mobility and efficient site relocation, eliminating the cumbersome foundation construction, equipment installation, and commissioning processes associated with traditional plants.

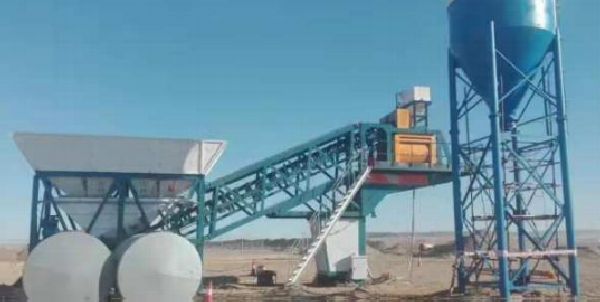

product-600-302
2. Highly integrated and ready to tow: All units-including aggregate batching, weighing, conveying, mixing, and control systems, as well as powder silos-are compactly mounted on a semi-trailer chassis or towing unit. The entire plant resembles a large trailer equipped with tires and a towing pin, allowing it to be quickly hauled to the next job site by a tractor truck. Some models can reach towing speeds of 50–60 km/h on public roads.

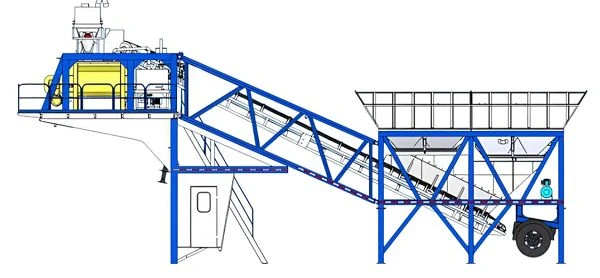

product-600-278

3. Quick assembly/disassembly and rapid commissioning: This is the key distinction from stationary plants. Thanks to modular design and quick-connect fittings, on-site installation is extremely fast.



4. Foundation-free or simple foundation: In many cases, simple site leveling and hardening suffice, eliminating the need to pour complex concrete foundations.

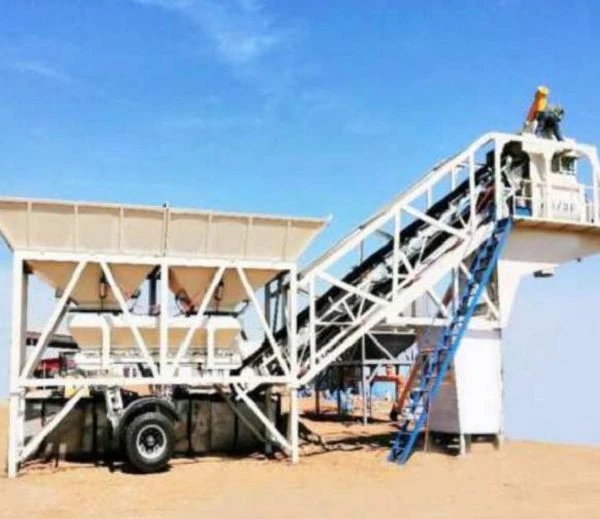

product-600-519
5. High adaptability and operational flexibility: These characteristics make the plant particularly suitable for the following scenarios:
Projects with short construction cycles and relatively low concrete volume requirements, such as rural roads and small bridges.
Field construction projects requiring frequent relocation, such as railway and highway construction or wind power foundation projects.
Mobile Concrete Batching Plant Initial preparation phases of large-scale projects requiring a temporary concrete supply.

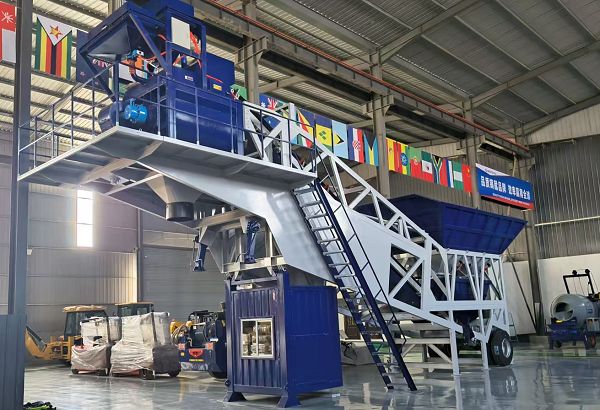

product-600-410



Mobile Concrete Mixing Plant Basic operating parameters

Model

Theoretical Capacity

Mixer

Discharge Height

Aggregate Bins

Cement Silo Configuration

Total Installed Power

Installation Type

HZY60

60m³/h

JS1000

4m

PLD1200

100T*2

68 kW

Mobile Batching Plant

HZY90

90m³/h

JS1500

4m

PLD2400

100T*2

85 kW

Mobile Batching Plant
