Product Introduction
Compared with ordinary masonry mortar and plastering mortar, Colored Decorative Dry Mortar places greater emphasis on color stability, fineness, uniformity, decorative appearance, and batch-to-batch consistency.

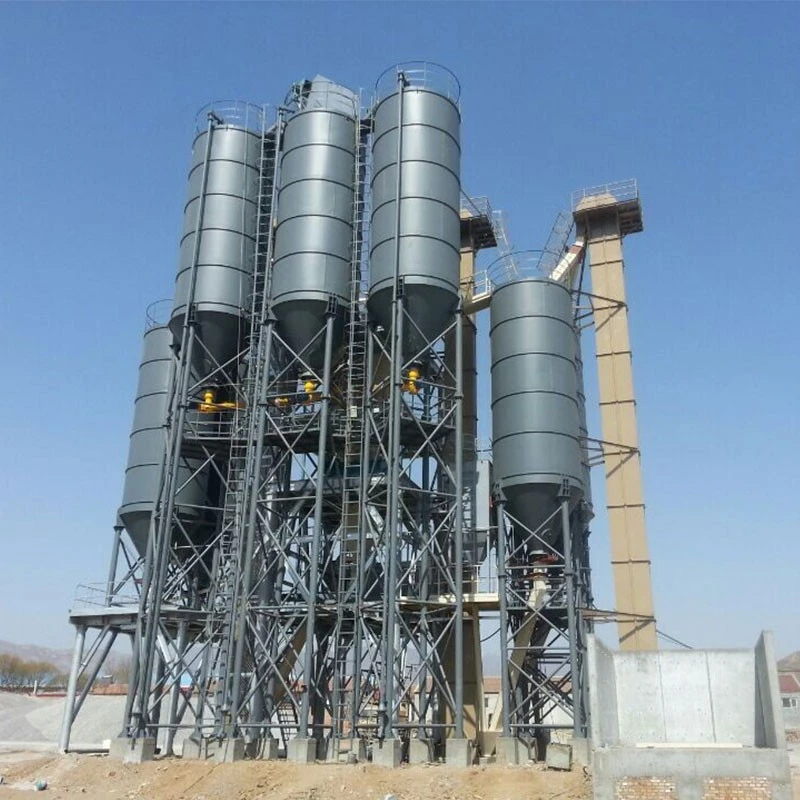

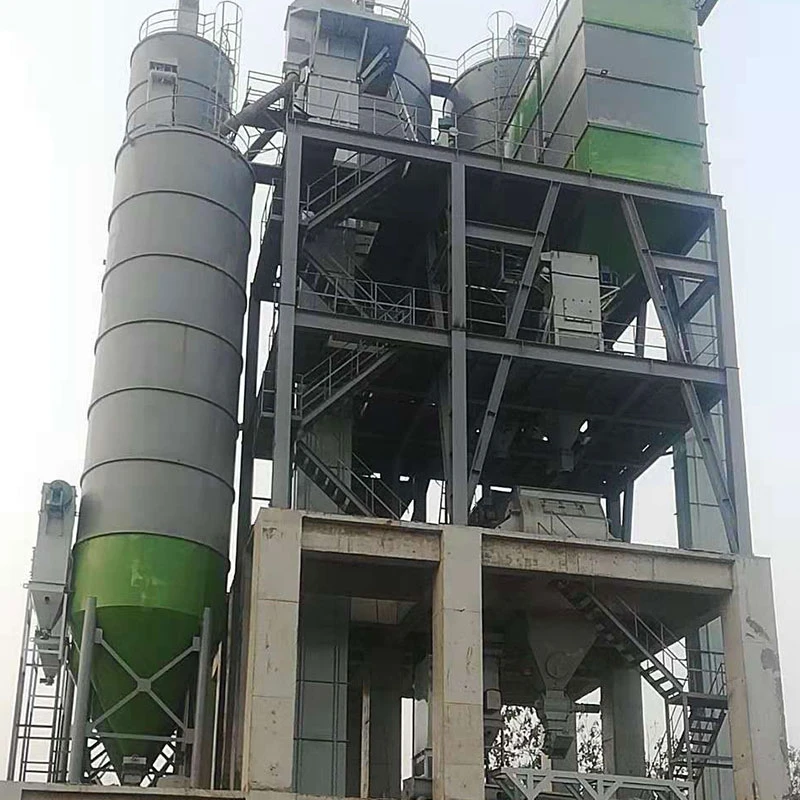

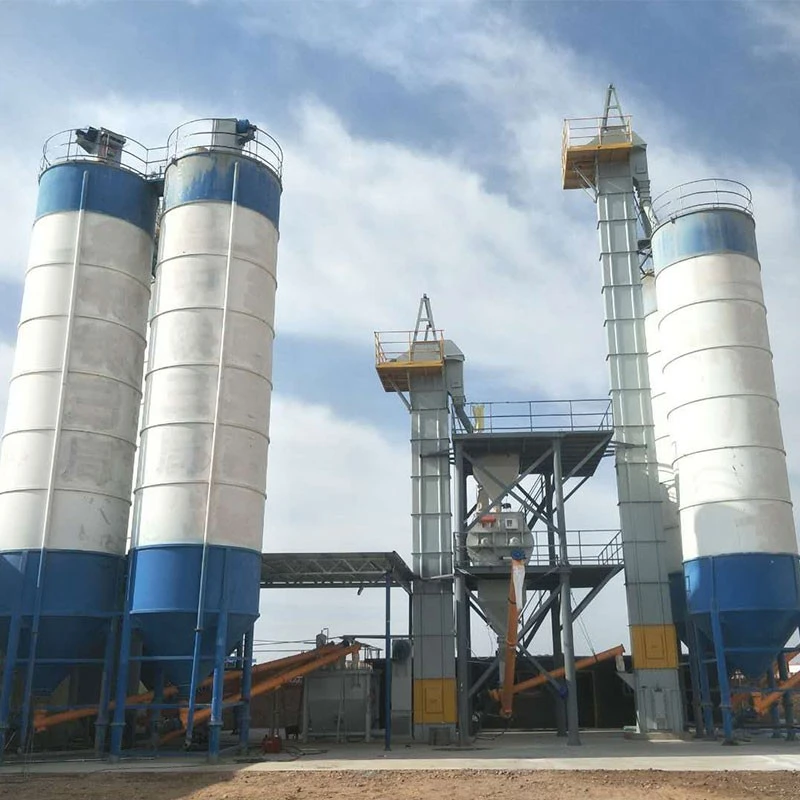

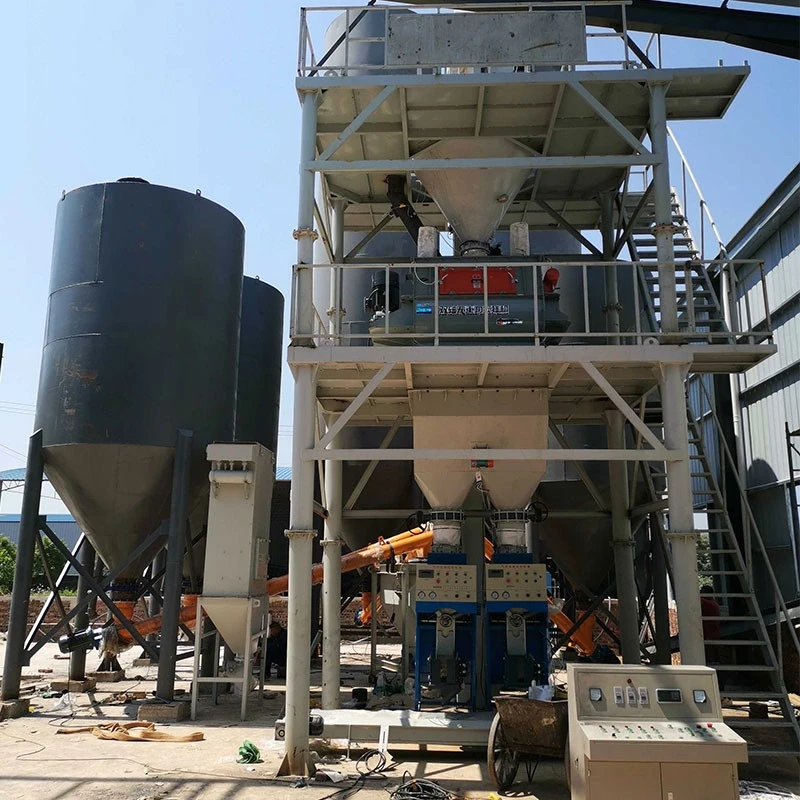

The Colored Decorative Dry Mortar Production Line is specially designed for producing colored decorative mortar, colored finishing mortar, architectural decorative mortar, and other cement-based decorative dry-mix materials.
Raw Materials and Functions
Typical colored decorative dry mortar consists of: Cement + Fine Sand + Mineral Filler + Pigment + Functional Additives
- Cement: Provides basic strength and bonding performance.
- Fine Sand: Provides the structural framework and a good surface texture.
- Mineral Filler: Improves fineness and workability.
- Pigment : Provides different colors and decorative effects.
- Functional Additives: Improve water retention, workability, bonding performance, and other properties.
Different formulations can be adjusted according to the required product performance and color specifications.
Mixing Technology Requirements
Colored decorative mortar typically contains fine sand, powders, pigments, and small amounts of functional additives, which may differ significantly in particle size and density.
Therefore, the production line must provide high mixing uniformity.

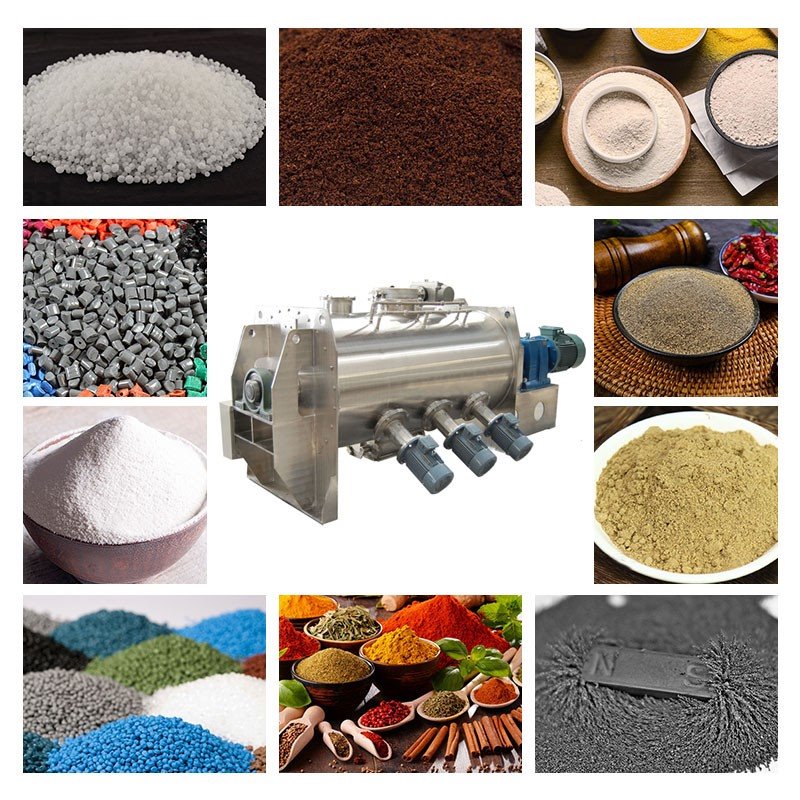

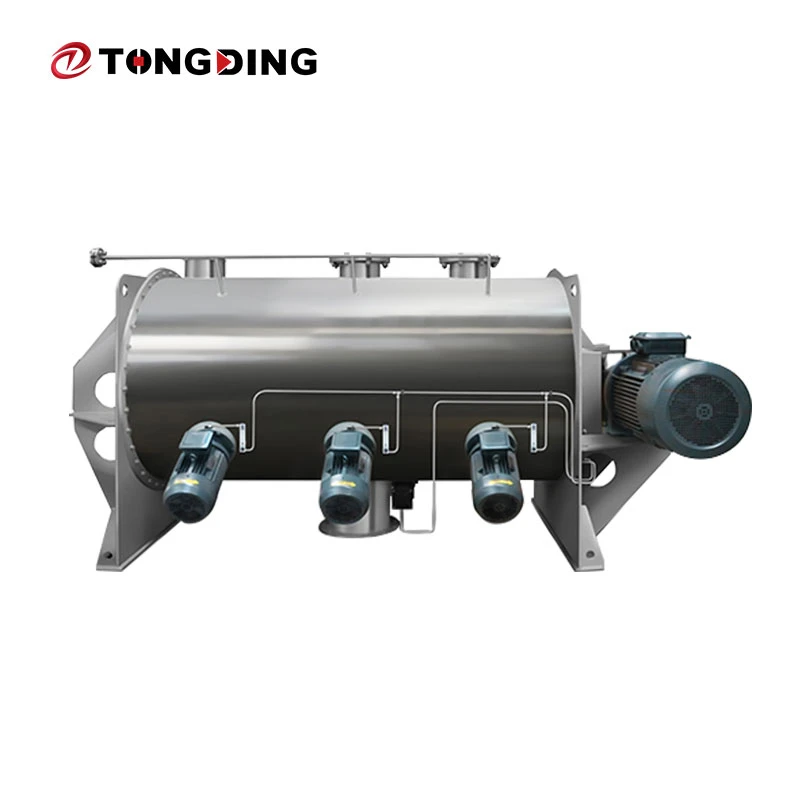

A high-performance dry powder mixer ensures that pigments and functional additives are evenly dispersed throughout the base materials, improving the color uniformity and batch-to-batch consistency of the finished product.
For products with particularly high color consistency requirements, the feeding sequence, mixing time, and micro-additive dosing method can also be optimized according to the specific formulation.
Specification and Parameter
|
Model |
Volume (m3) |
Power (KW) |
Loading Factor |
Weight(kg) |
Mixing time (min) |
Dimension(L*W*H) (mm) |
|
|
TDL-0.1 |
0.1 |
3 |
0.4-0.6 |
430 |
1-4 |
1270×865×850 |
|
|
TDL-0.3 |
0.3 |
4 |
950 |
2070×1050×1150 |
|||
|
TDL-0.5 |
0.5 |
5.5 |
1100 |
2180×1200×1300 |
|||
|
TDL-1 |
1 |
11 |
1800 |
2830×1620×1550 |
|||
|
TDL-2 |
2 |
18.5 |
2520 |
3420×1810×1758 |
|||
|
TDL-3 |
3 |
18.5 |
3200 |
3420×2045×1983 |
|||
|
TDL-4 |
4 |
22 |
4836 |
4200×2140×2123 |
|||
|
TDL-6 |
6 |
30 |
8775 |
4680×2290×2448 |
|||
|
TDL-8 |
8 |
45 |
9360 |
5560×2390×2608 |
|||
|
TDL-10 |
10 |
55 |
9750 |
5140×2390×2850 |
|||
|
TDL-12 |
12 |
55 |
10660 |
5720×3110×2960 |
|||
|
TDL-15 |
15 |
75 |
11050 |
5920×3280×3140 |
|||
|
The type of mortar that can be produced by a machine |
|||||||
|
1.Masonry mortar |
2.Plastering mortar(bottom) |
||||||
|
3.Floor mortar |
4.Adhesive mortar(stupid board glue) |
||||||
|
5. Wall tiles adhere to mortar |
6.Caulking agent mortar(black) |
||||||
|
7.Caulking agent mortar(cream-coloured) |
8.Caulking agent mortar(white) |
||||||
|
9.Seaming agent mortar |
10.General non-shrinkage grouting material |
||||||
|
11.Thermal mortar |
12.Glue for tile ,good cement |
||||||
|
13.Self-leveling mortar |
14.Inter facial mortar |
||||||
|
15.Cement plaster mortar |
16.Whitewashed plaster(bottom) |
||||||
|
17.Waterproof paint |
18.External putty powder |
||||||
|
19.Internall wall putty powder |
20.Emulsion varnish |
||||||
|
21.Really stone paint |
22.Other powder material |
||||||
Applications
Colored decorative dry mortar can be widely used in:
Building Facades
For exterior decoration and surface protection of buildings.
01
Interior Walls
For interior wall decoration, finishing, and textured surface applications.
02
Commercial Buildings
Suitable for decorative applications in shopping malls, hotels, office buildings, and other commercial projects.
03
Residential Buildings
Used for exterior facades and interior decorative finishes in residential buildings.
04
Landscaping & Public Buildings
Suitable for landscape walls, public facilities, and other architectural decoration projects.
05
